Restraints

U0019-CAN B BUS





MS-CAN B D54 AND D55

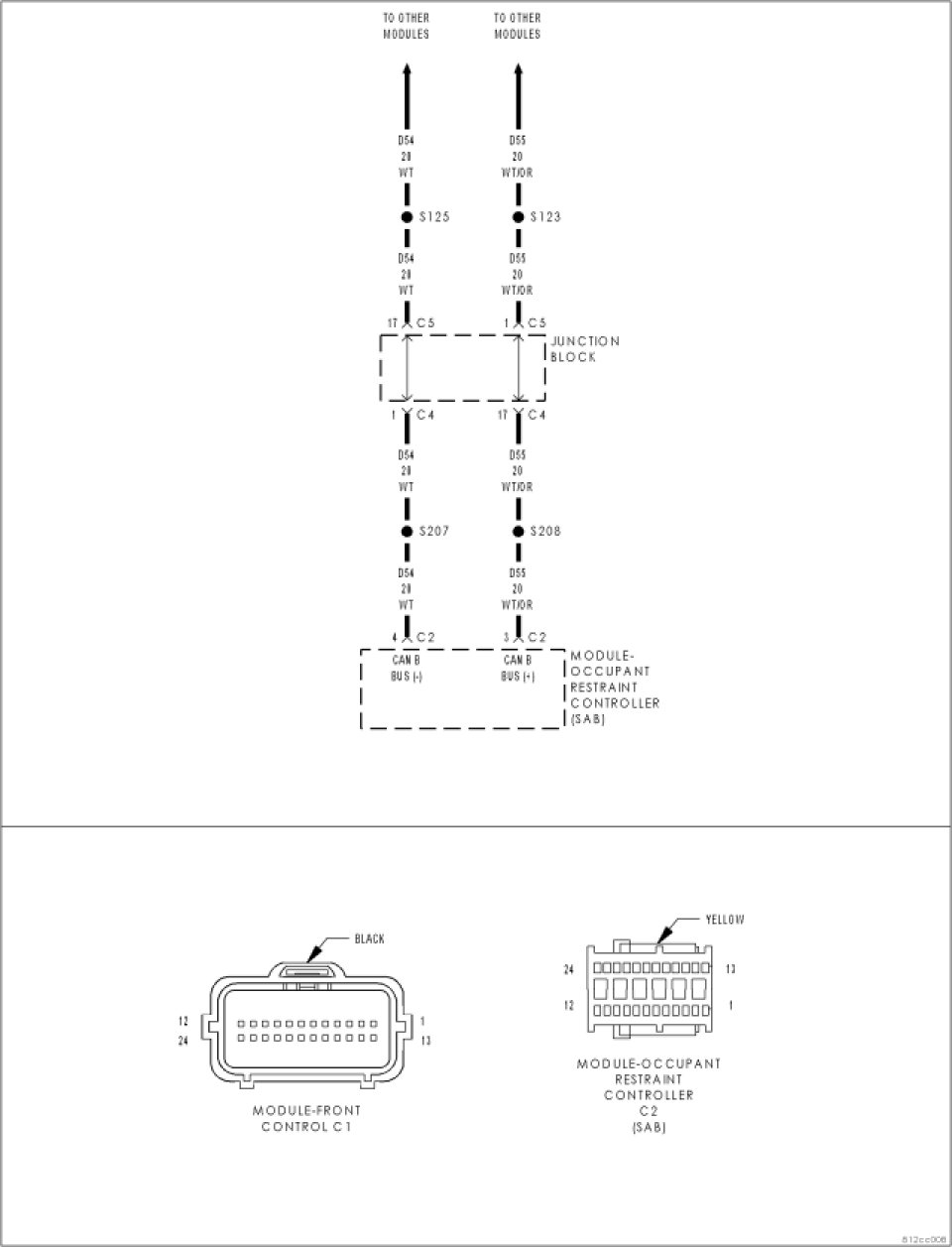

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

Continuously

- Set Condition:

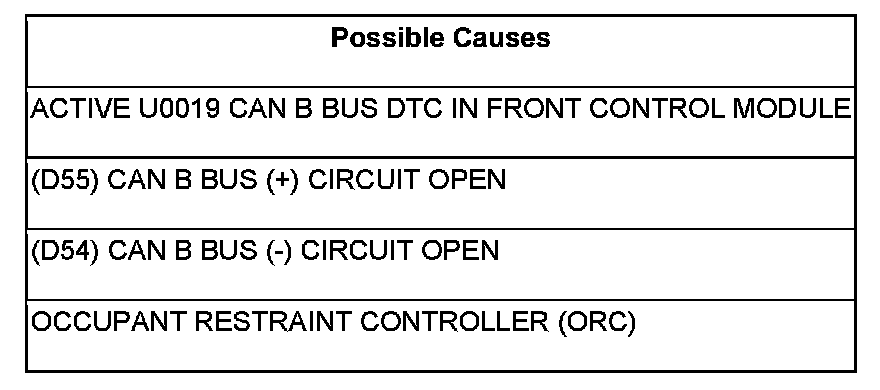

Whenever the CAN B Bus (+) or CAN B Bus (-) circuit is open, shorted to voltage, or shorted to ground.





Diagnostic Test

1.VERIFY DTC U0019-CAN B BUS IS ACTIVE

Turn the ignition on.

With the scan tool, read Occupant Restraint Controller (ORC) DTCs.

Does the scan tool display active: U0019-CAN B BUS?

Yes

- Go To 2

No

- If the DTC is stored, check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
- Perform *ORC VERIFICATION TEST - VER 1. Occupant Restraint Controller (ORC) Verification Test

2.CHECK FOR ACTIVE CAN B BUS RELATED DTCS IN THE FRONT CONTROL MODULE (FCM)

With the scan tool, read Front Control Module (FCM) DTCs

Does the scan tool display any active: CAN B BUS related DTCs?

Yes

- Diagnose and repair the DTC(s).

No

- Go To 3

3.CHECK (D55) CAN B BUS (+) CIRCUIT FOR AN OPEN





Turn the ignition off.

Disconnect the negative battery cable.

Disconnect the ORC C2 connector.

Disconnect the Front Control Module (FCM) C1 connector.

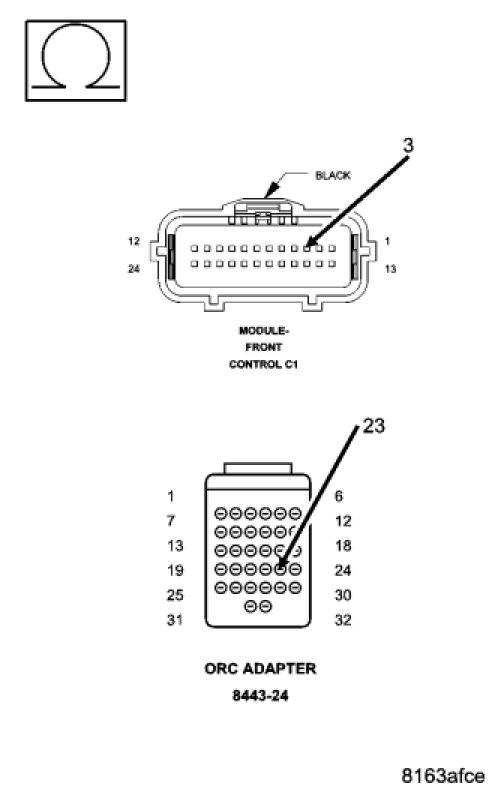

Measure the resistance of the (D55) CAN B Bus (+) circuit between the Front Control Module C1 connector and the ORC C2 connector.

Is the resistance below 2.0 ohms?

Yes

- Go To 4

No

- Repair the (D55) CAN B Bus (+) circuit for an open.
- Perform *ORC VERIFICATION TEST - VER 1. Occupant Restraint Controller (ORC) Verification Test

4.CHECK (D54) CAN B BUS (-) CIRCUIT FOR AN OPEN

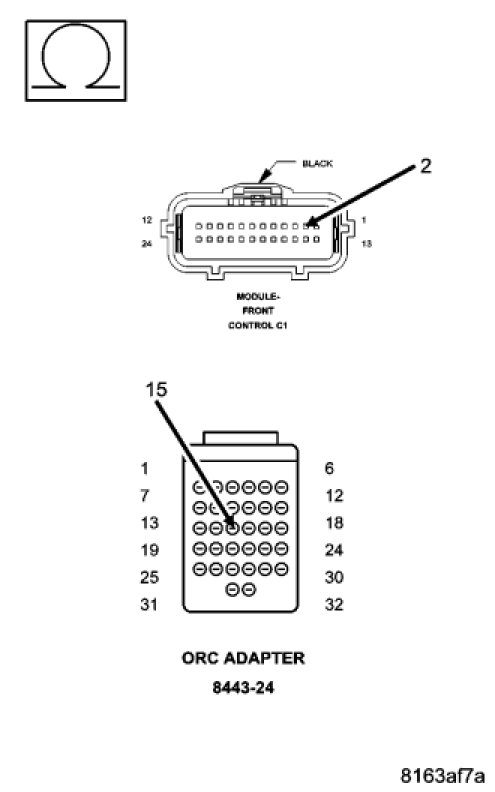

Measure the resistance of the (D54) CAN B Bus (-) circuit between the Front Control Module C1 connector and the ORC C2 connector.

Is the resistance below 2.0 ohms?

Yes

- Replace the ORC.
- Perform *ORC VERIFICATION TEST - VER 1. Occupant Restraint Controller (ORC) Verification Test

No

- Repair the (D54) CAN B Bus (-) circuit for an open.
- Perform *ORC VERIFICATION TEST - VER 1. Occupant Restraint Controller (ORC) Verification Test
