Instrument Cluster

U0019-CAN B BUS

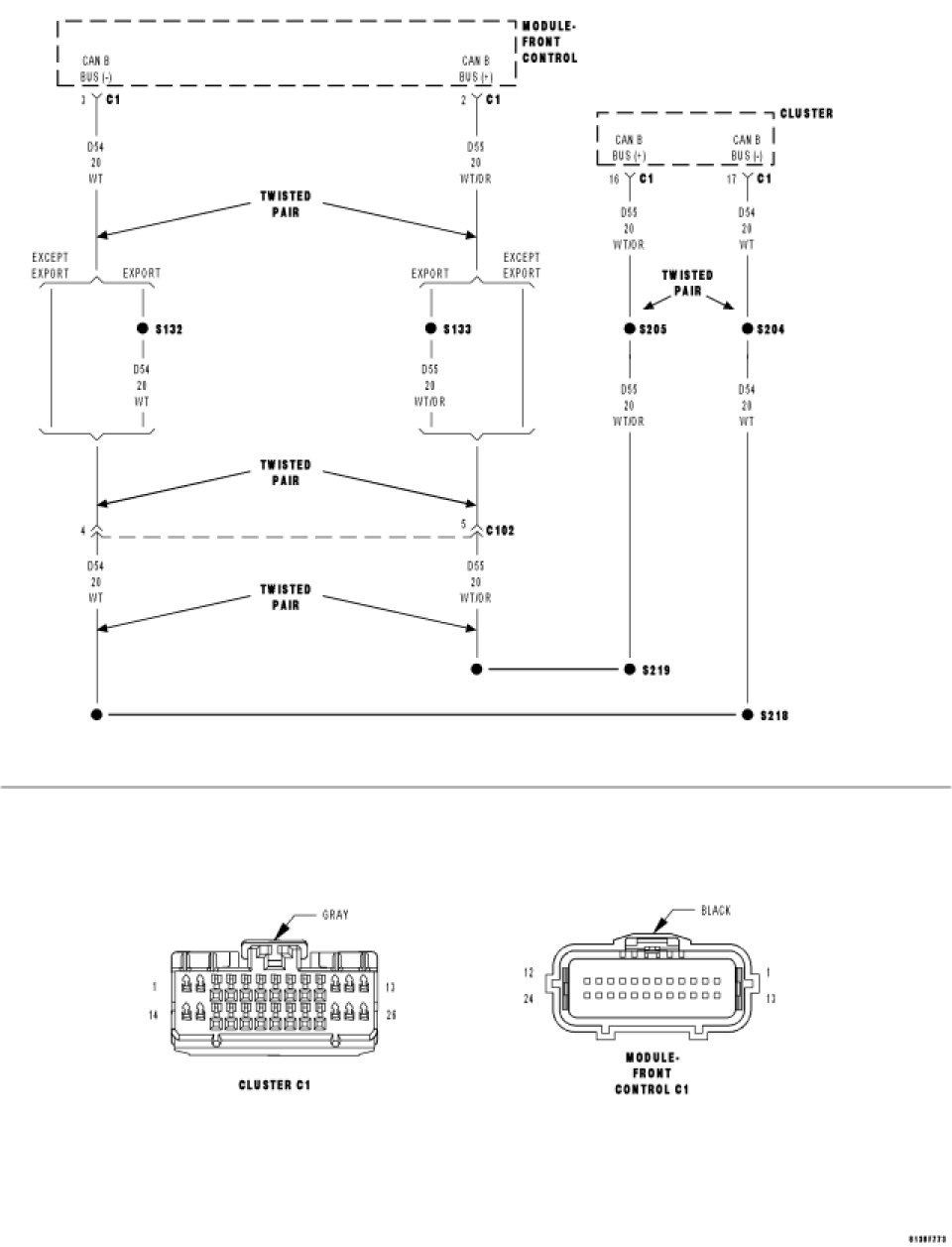

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

With the Instrument Cluster awake.

- Set Condition:

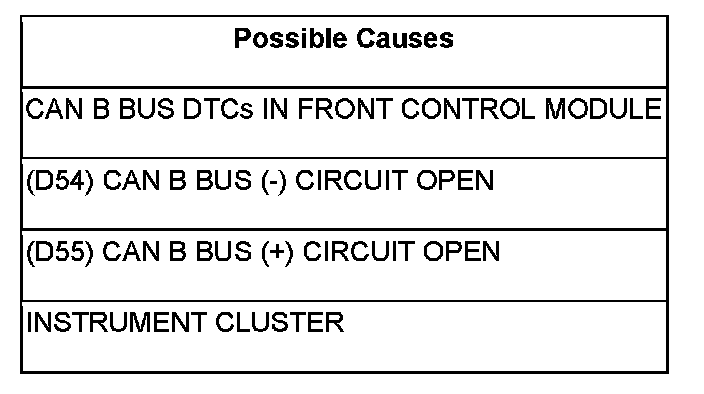

Whenever the Can B Bus (+) or B Bus (-) circuit is open, shorted to voltage or shorted to ground, this code will set.





Diagnostic Test

1.CHECK FOR AN ACTIVE DTC

Turn the ignition on.

With the scan tool, record and erase DTCs.

Cycle the ignition from on to off 3 times.

Turn the ignition on.

With the scan tool, read DTCs.

Is the DTC active?

Yes

- Go To 2

No

- The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2.CHECK FRONT CONTROL MODULE DTCs

With the scan tool, read Front Control Module DTCs.

Does the scan tool display the U0019-CAN B BUS DTC?

Yes

- Refer to the symptom list for problems related to Communication.

No

- Go to 3
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

3.CAN B BUS (+) CIRCUIT OPEN





Turn the ignition off.

Disconnect the Instrument Cluster C1 harness connector.

Disconnect the Front Control Module C1 harness connector.

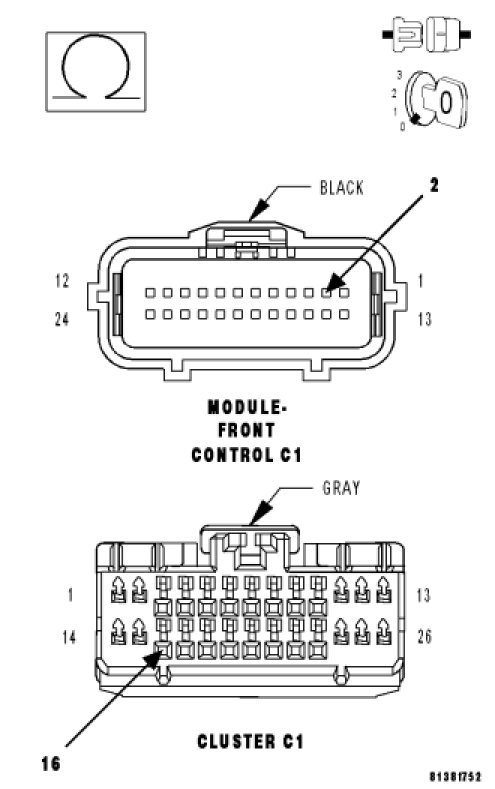

Measure the resistance of the (D55) Can B Bus (+) circuit between the Front Control Module C1 harness connector and the Instrument Cluster C1 harness connector.

Is the resistance below 2.0 ohms?

Yes

- Go To 4

No

- Repair the Can B Bus (+) circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

4.CAN B BUS (-) CIRCUIT OPEN





Measure the resistance of the (D54) Can B Bus (-) circuit between the Front Control Module C1 harness connector and the Instrument Cluster C1 harness connector.

Is the resistance below 2.0 ohms?

Yes

- Replace the Instrument Cluster.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Repair the Can B Bus (-) circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
