42RLE Automatic Transmission

P0613-INTERNAL TRANSMISSION PROCESSOR

For a complete wiring diagram Refer to Diagrams/Electrical. Electrical Diagrams


Theory of Operation


The internal watchdog is a separate hardware circuit which continuously monitors the microprocessor. To make sure the transmission is operating properly, the watchdog must receive a signal from the microprocessor within a specific time window. MIL on after 10 seconds of vehicle operation and transmission will be placed in limp-in.


- When Monitored:

After the ignition key is turned to the run position and 60 seconds thereafter.

- Set Condition:

Either of the following conditions occur 3 times in less than 590 milliseconds: The watchdog line remains high after the watchdog test or the transmission relay coil is energized and remains on after the watchdog delay expires.







Always perform the 42RLE Pre-Diagnostic Troubleshooting Procedure before proceeding. 42RLE - Pre-Diagnostic Troubleshooting Procedure



Diagnostic Test

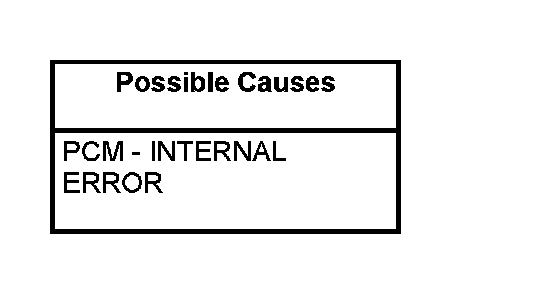

1. PCM - INTERNAL ERROR

View repair.

Repair

- Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the PCM. With the scan tool PERFORM QUICK LEARN, then program Pinion Factor in the Front Control Module.

- Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1. Verification Tests
