Manufacturer Code Charts: 11

11-MODE POT OPEN (MTC)

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

If the mode pot fails the internal self test.





NOTE: This DTC must be active for the results of this test to be valid. Do not perform this test if this DTC is stored. Refer to HVAC System Test (MTC) for stored DTC test procedures. HVAC System Test (MTC)

Diagnostic Test

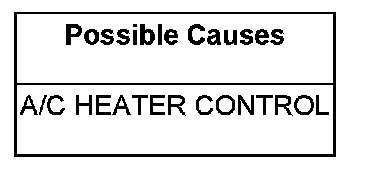

1.REPLACE THE A/C HEATER CONTROL

Theory of Operation

Repair

- Replace the A/C Heater Control.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
