B2338
B2338-HORN CONTROL CIRCUIT OPEN - FCM
For a complete wiring diagram Refer to Diagrams/Electrical.
- When Monitored:
Continuously
- Set Condition:
When the Front Control Module does not detect voltage on the Horn Relay Control circuit.

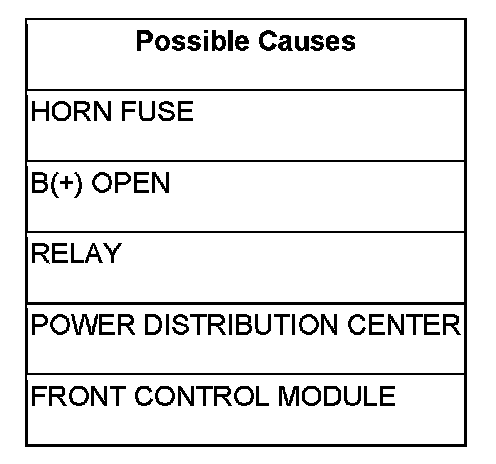

Diagnostic Test
1.TEST FOR INTERMITTENT CONDITION
With the scan tool, record and erase DTC's
Operate the Horn Switch several times.
Cycle the ignition from on to off 3 times and leave on.
With the scan tool, read DTC's.
Does the scan tool display B2338 - HORN CONTROL CIRCUIT OPEN?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
2.HORN FUSE
Using a 12-volt test light connected to ground, check the Horn fuse.
Does the test light illuminate and was the fuse OK?
No
- Replace the horn fuse if open and check for a short to ground on the Horn Relay Output circuit or correct the open B(+) circuit to the fuse.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
Yes
- Go To 3
3.OPEN FUSED B(+) TO RELAY
Remove the Horn Relay from the PDC.
Using a 12-volt test light connected to ground, check the Fused B(+) circuit at the relay connector.
Does the test light illuminate?
No
- Replace the Power Distribution Center.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
Yes
- Go To 4
4.HORN RELAY
Install a known good relay in place of the Horn Relay.
With the scan tool erase DTC's
Operate the Horn Switch several times.
Cycle the ignition from on to off 3 times and leave on.
With the scan tool, read DTC's.
Does the scan tool display B2338 - HORN CONTROL CIRCUIT OPEN?
No
- Replace the original Horn Relay.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
Yes
- Go To 5

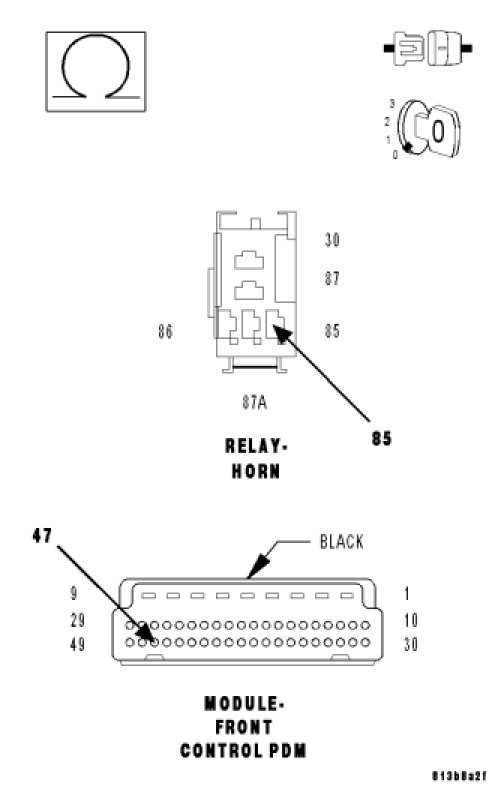

5.(X4)HORN RELAY CONTROL OPEN
Measure the resistance of the (X4)Horn Relay Control circuit from the relay connector to FCM connector.
Is the resistance below 3.0 ohms?
Yes
- Replace the Front Control Module.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
No
- Replace the Power Distribution Center.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
