B2328

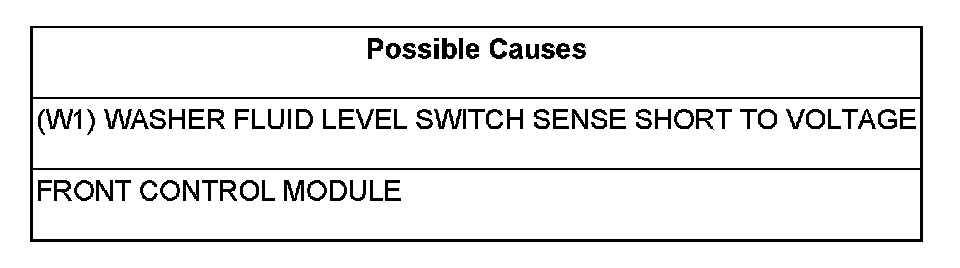

B2328-WASHER FLUID LEVEL SENSOR INPUT CIRCUIT HIGH

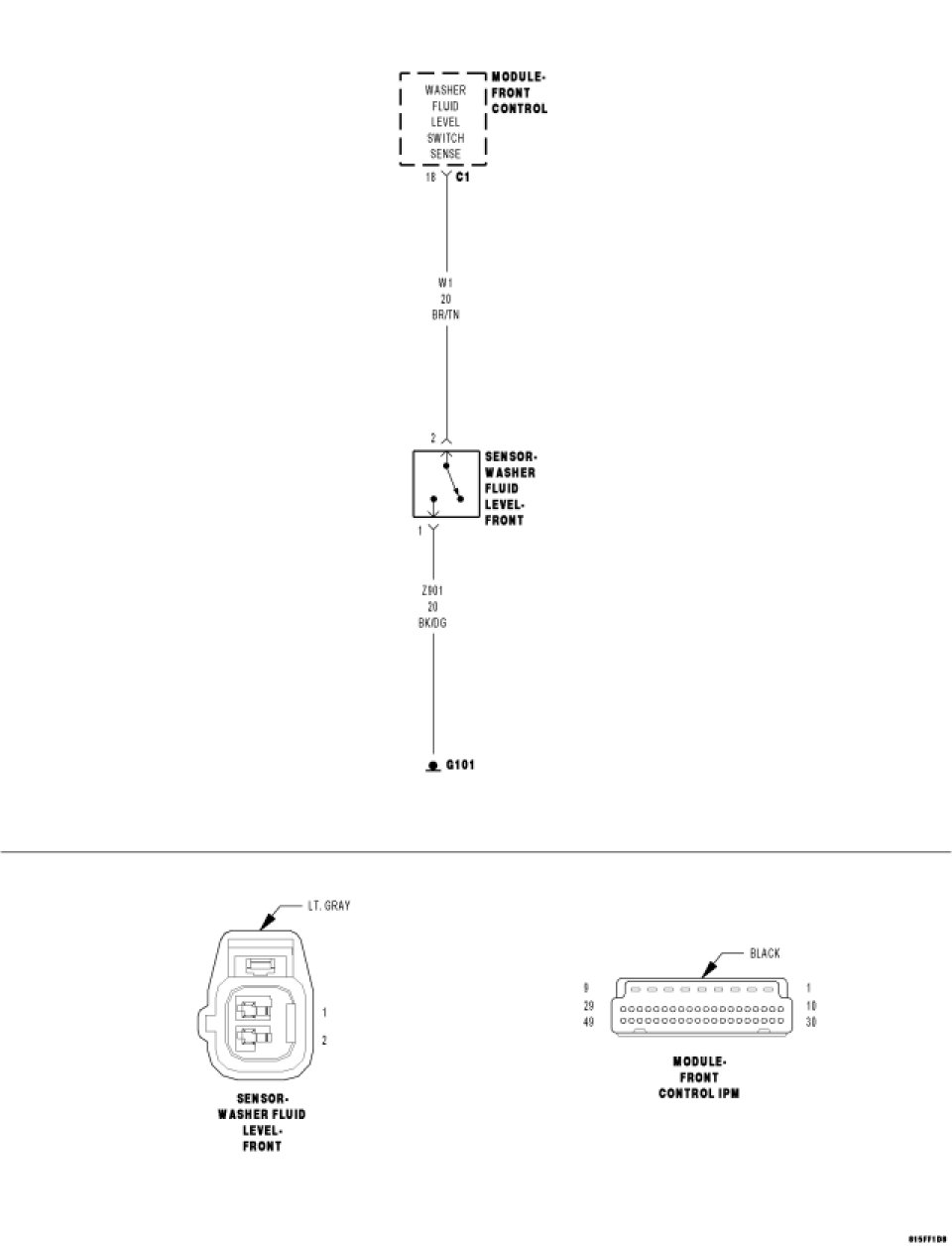

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

When the FCM detects a HIGH condition.





Diagnostic Test

1.INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, clear all FCM DTC's.

Turn the Wiper Washers on.

With the Scan Tool, read the Wiper DTC's.

Does the Scan Tool read: B2328-WASHER FLUID LEVEL SENSOR INPUT CIRCUIT HIGH?

Yes

- Go To 2

No

- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test


2.W1 WASHER FLUID LEVEL SENSOR CONTROL CIRCUIT SHORT TO VOLTAGE





Turn the ignition off.

Disconnect the Washer Fluid Level Sensor connector.

Disconnect the Front Control Module C1 connector.

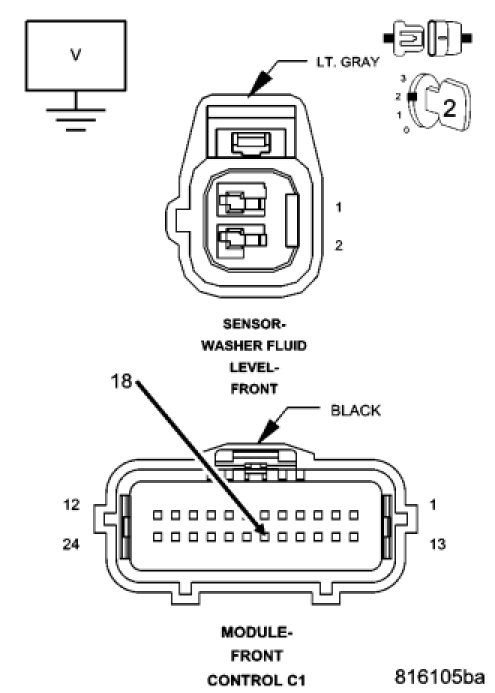

Measure the voltage of the (W1) Washer Fluid Level Sensor control circuit.

Is the voltage above 10.0 volts?

Yes

- Repair the (W1) Washer Fluid Level Sensor control circuit.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test


No

- Replace the Front Control Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
