B2325

B2325-HEADLAMP WASHER MOTOR CONTROL CIRCUIT OPEN

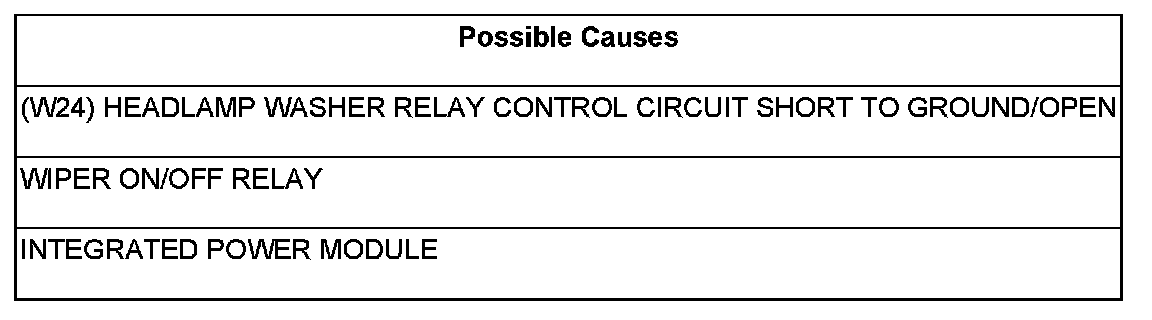

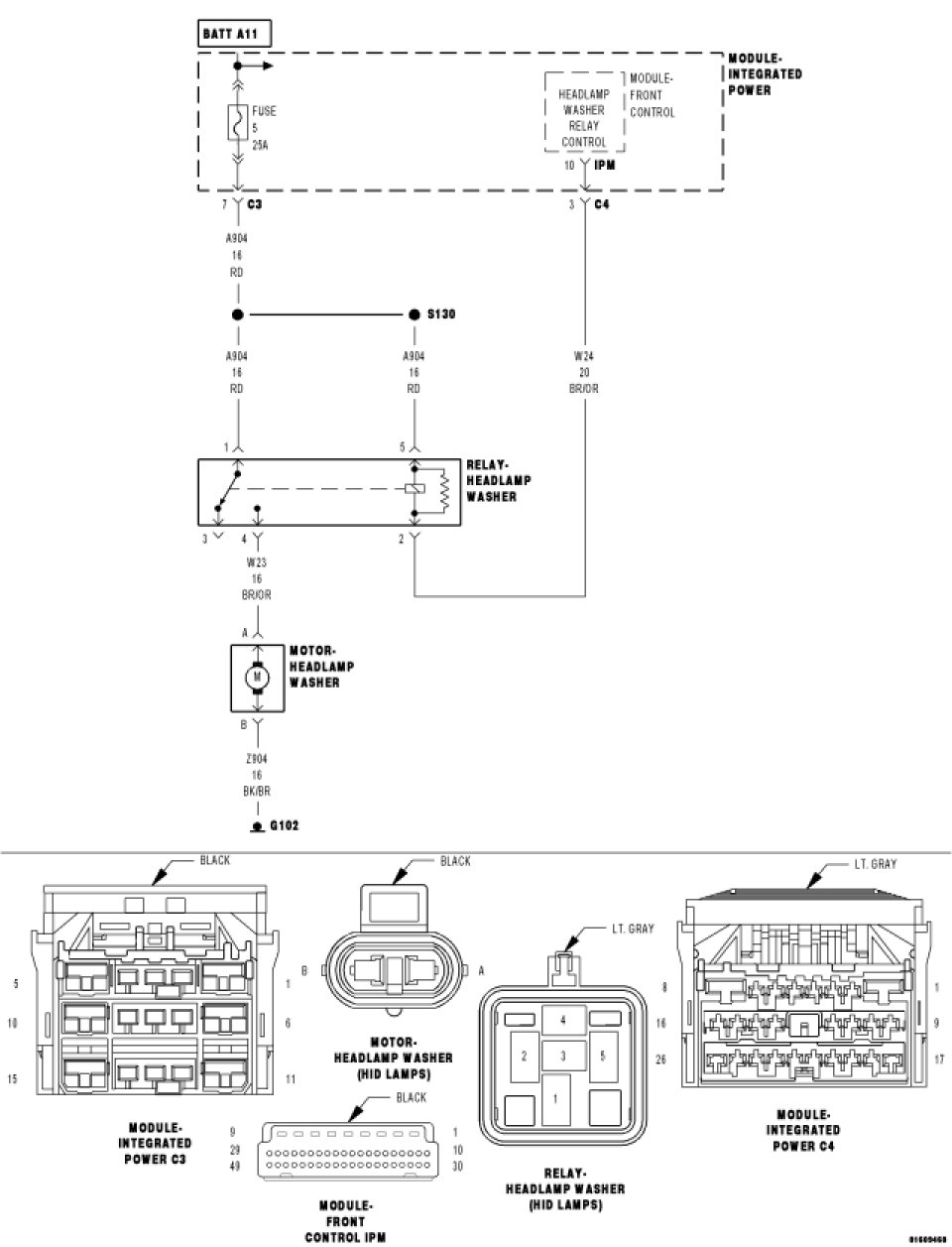

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:
- With the ignition on.
- Set Condition:
- When the FCM detects a short to ground/open condition.





Diagnostic Test

1.INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, clear all FCM DTC's.

Turn the Head Lamp Washers on.

With the Scan Tool, read the FCM DTC's.

Does the Scan Tool read: B2325-HEADLAMP WASHER MOTOR CONTROL CIRCUIT OPEN?

Yes

- Go To 2

No

- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test


2.(W24) HEADLAMP WASHER RELAY CONTROL CIRCUIT SHORT TO GROUND

Turn the ignition off.

Disconnect the IPM C4 Connector.

Measure the resistance of the (W24) Headlamp Washer Relay Control circuit to ground.

Is the resistance below 5.0 ohms?

Yes

- Repair the (W24) Headlamp Washer Relay Control circuit for a short to ground or open condition.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test


No

- Go To 3

3.INTEGRATED POWER MODULE

Turn the ignition off.

Replace the Head Lamp Washer Relay with and known good relay.

With the Scan Tool, clear all FCM DTC's.

Turn the Head Lamp Washers ON then OFF.

With the Scan Tool, read the Wiper DTC's.

Does the Scan Tool read: B2325-HEADLAMP WASHER MOTOR CONTROL CIRCUIT HIGH?

Yes

- Replace the Integrated Power Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test


No

- Replace the Headlamp Washer Relay.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
