B2321

B2321-FRONT/REAR WASHER MOTOR CONTROL CIRCUIT OPEN





For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

The FCM detects an open condition.





Diagnostic Test

1.INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, clear all FCM DTC's.

Turn the Washers on.

With the Scan Tool, read the FCM DTC's.

Does the Scan Tool read: B2321-FRONT/REAR WASHER MOTOR CONTROL CIRCUIT OPEN?

Yes

- Go To 2

No

- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test


2.(W10) WASHER PUMP MOTOR CONTROL CIRCUIT OPEN





Turn the ignition off.

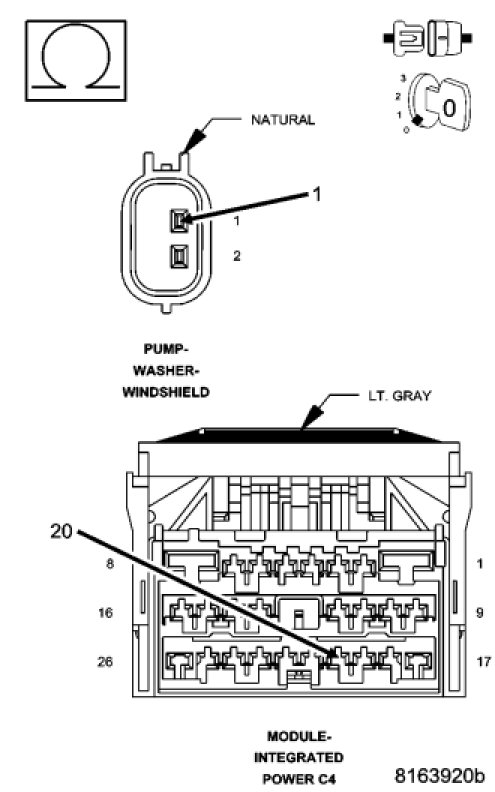

Disconnect the IPM C4 harness connector.

Disconnect the Washer Pump Motor harness connector.

Measure the resistance of the (W10) Washer Pump Motor Control circuit.

Is the resistance above 5.0 ohms?

Yes

- Repair the (W10) Washer Pump Motor Control circuit for an open.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test


No

- Go To 3

3.(W20) WASHER PUMP MOTOR CONTROL CIRCUIT OPEN

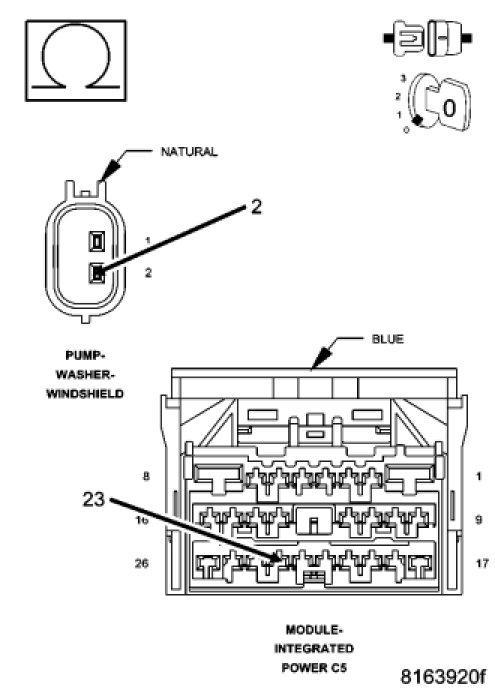

Disconnect the IPM C5 harness connector.

Measure the resistance of the (W20) Washer Pump Motor Control circuit.

Is the resistance above 5.0 ohms?

Yes

- Repair the (W20) Washer Pump Motor Control circuit for an open.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test


No

- Replace the Front Control Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
