B2314

B2314-WIPER ON/OFF CONTROL CIRCUIT HIGH

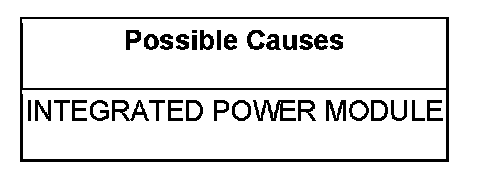

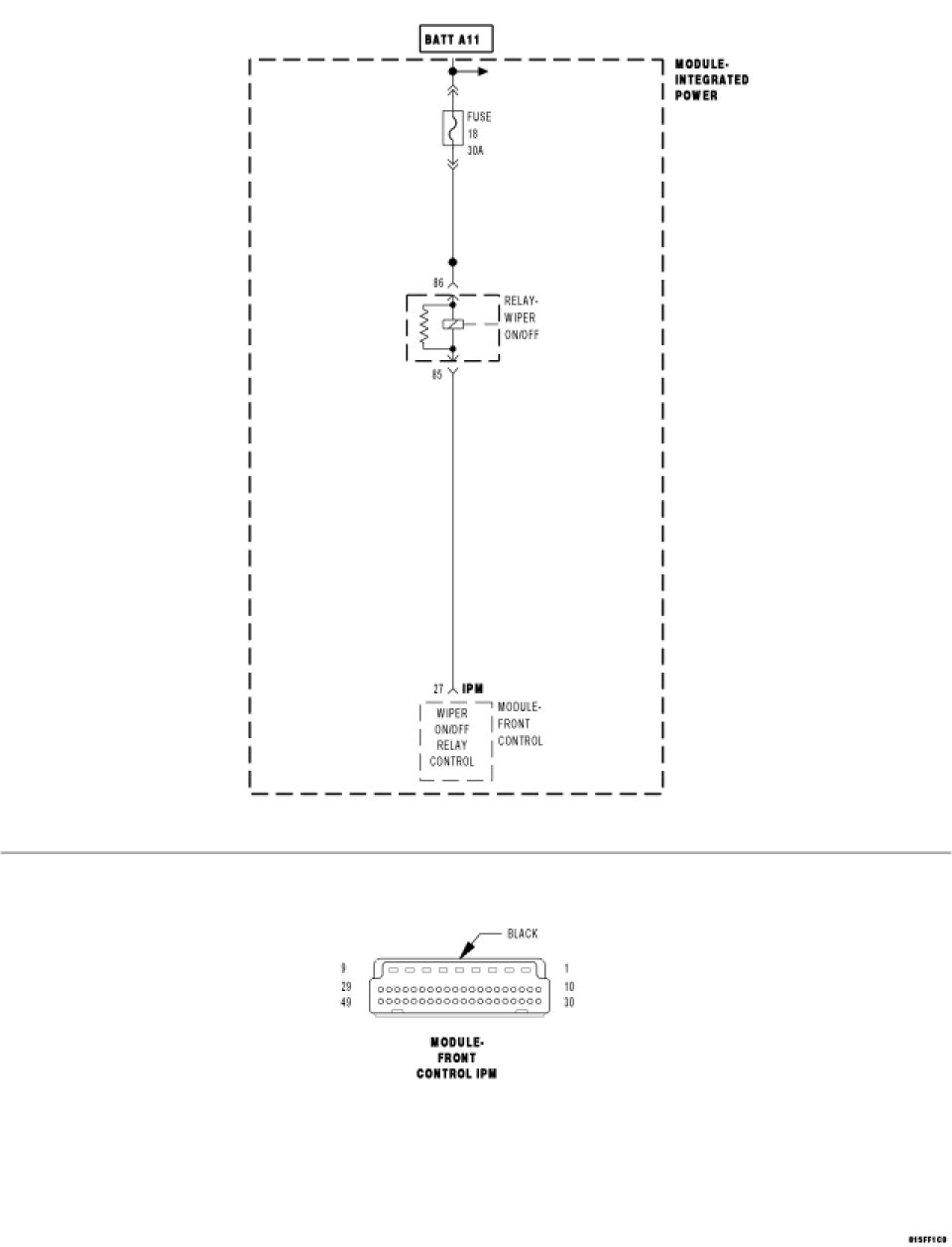

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:
- With the ignition on.
- Set Condition:
- When the FCM detects a short/HIGH condition.





Diagnostic Test

1.INTEGRATED POWER MODULE

Turn the ignition off.

Replace the Wiper ON/OFF relay with and known good relay.

With the Scan Tool, clear all FCM DTC's.

Turn the Wipers ON then OFF.

With the Scan Tool, read the Wiper DTC's.

Does the Scan Tool read: B2314-WIPER ON/OFF CONTROL CIRCUIT HIGH?

Yes

- Replace the Integrated Power Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test


No

- Test complete.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
