B2239

B2239-HID LEVELING TRANSLATOR ECU INTERNAL

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:
- Continuously with the ignition on.
- Set Condition:

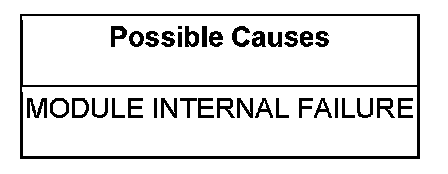

- The code will set when the HID Module detects an internal failure.





Diagnostic Test

1.Verify DTC B2239-HID LEVELING TRANSLATOR ECU INTERNAL IS ACTIVE

NOTE: If a DTC is set, erase the DTC and attempt to reset the DTC. If the DTC resets, follow test.

This is an internal module failure

View repair

Does the DTC reset and read B2239-HID LEVELING TRANSLATOR ECU INTERNAL?

Repair

- Replace the HID Translator Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
