B2236

B2236-RIGHT FRONT HEADLAMP BALLAST ECU INTERNAL

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:
- Continuously with the Headlamps on.
- Set Condition:
- The code will set when a Check Sum error is detected.





Diagnostic Test

1.Verify DTC B2236-RIGHT FRONT HEADLAMP BALLAST ECU INTERNAL IS ACTIVE

NOTE: If a DTC is set, erase the DTC and attempt to reset the DTC. If the DTC resets, follow test.

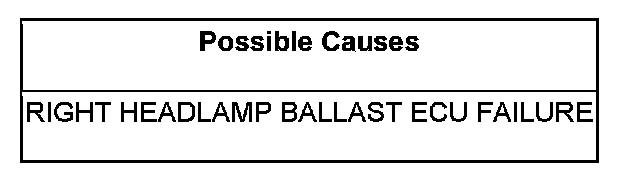

This is an internal Headlamp Ballast ECU failure

View repair

Does the DTC reset and read B2236-RIGHT FRONT HEADLAMP BALLAST ECU INTERNAL?

Repair

- Replace the Right Side Headlamp Ballast ECU.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
