B2232

B2232-(PTS) PARKTRONICS INTERNAL

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

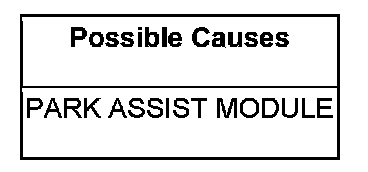

The Park Assist Module detects an internal failure.





Diagnostic Test

1.REPLACE THE PARK ASSIST MODULE

View Repair

Repair

- Replace the Park Assist Module.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
