Power Mirrors

B2218,B2219-DOOR MODULE INTERNAL

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

Ignition on.

- Set Condition:

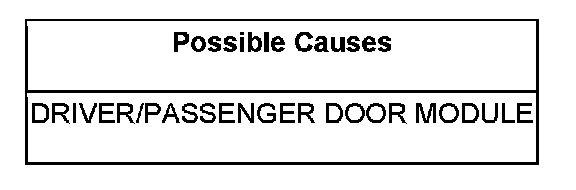

This code is set immediately if the Driver/Passenger Door Module internal self test fails.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

1.VERIFY THAT DTC B2218, B2219-DOOR MODULE INTERNAL IS ACTIVE

With the scan tool, record and erase DTC's

Cycle the ignition switch off then back on.

With the scan tool, read DTC's.

Does the DTC B2218 or B2219 - DOOR MODULE INTERNAL reset?

Yes

- Replace the appropriate Door Module.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
