B2215

B2215-FRONT CONTROL MODULE INTERNAL

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

Continuously.

- Set Condition:

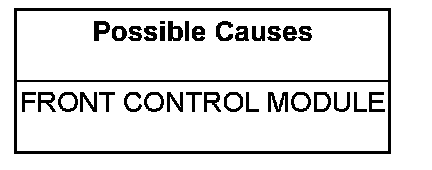

The Front Control Module detects an internal fault.





Diagnostic Test

1.REPLACE THE FRONT CONTROL MODULE IF DTC IS ACTIVE

With the scan tool, read the active FCM DTC's.

Does the scan tool display this DTC as active?

Yes

- Replace and program the Front Control Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
