B2213

B2213-CCN INTERNAL

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

With the Instrument Cluster awake.

- Set Condition:

The Instrument Cluster detects an internal failure.





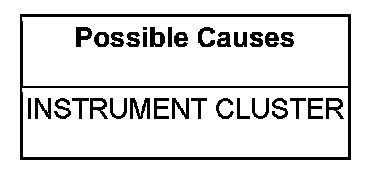

Diagnostic Test

1.VERIFY INSTRUMENT CLUSTER OPERATION

With the scan tool, read Cluster DTCs.

Is DTC: B2213-CABIN COMPARTMENT NODE/CLUSTER INTERNAL active?

YES

- Replace the Instrument Cluster.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

NO

- Test complete.
