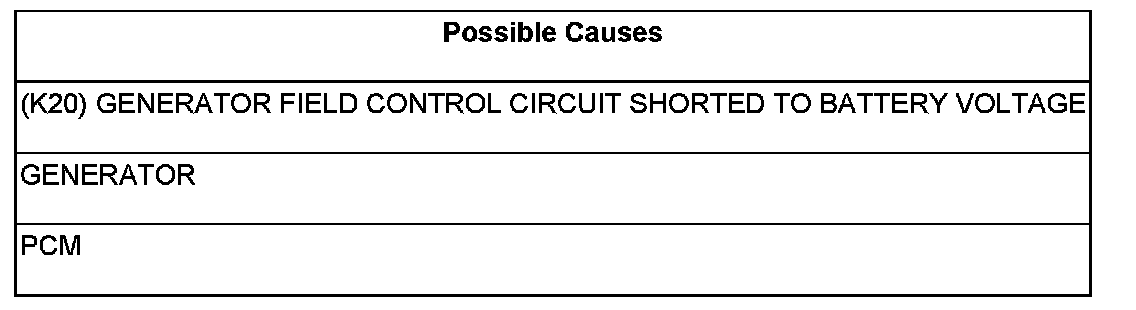

B210E-BATTERY VOLTAGE HIGH

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

Battery voltage greater than 16 volts for approximately 5 to 6 seconds.





Diagnostic Test

1.CHECK FOR ANY POWERTRAIN CONTROL MODULES DTCS

NOTE: Make sure the Battery is in good condition. Using the Motronics Battery Tester, test the Battery before continuing.

NOTE: Inspect the vehicle for after market accessories that may exceed the Generator System output.

NOTE: Make sure the generator drive belt is in good operating condition.

NOTE: Inspect the fuses in the IPM. If an open fuse is found, use the wire diagram/schematic as a guide, inspect the wiring and connectors for damage.

Turn the ignition on.

With the scan tool, read active PCM DTC's.

Does the scan tool display any active PCM DTC's?

Yes

- Refer to Engine testing.

No

- Check the above conditions that can cause a high voltage condition. Repair as necessary.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
