B1A32

B1A32-UNIVERSAL GARAGE DOOR SWITCH 1 STUCK

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

The Electronic Overhead Module detects the UGDO switch in the closed position for more than 2 minutes.





Diagnostic Test

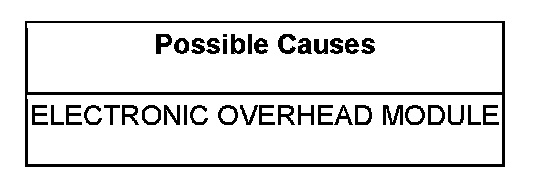

1.REPLACE THE ELECTRONIC OVERHEAD MODULE

When this code is set, the Electronic Overhead Module must be replaced.

Repair

- Replace the Electronic Overhead Module.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
