B1855

B1855-DRIVER WINDOW MOTOR CONTROL CIRCUIT HIGH - DDM





For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

Whenever the module is awake.

- Set Condition:

When both Driver Window Driver circuits (Up and Down) are supplied with voltage during a window movement command, this code will set.





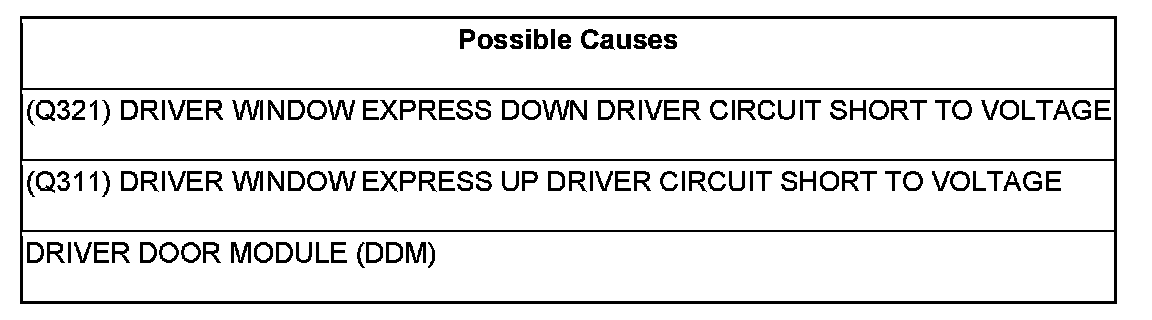

Diagnostic Test

1.TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

With the scan tool, record and erase DTC's

Try to operate the Driver Window up and down several times.

Wait 30 seconds.

With the scan tool, read DTC's.

Does the scan tool display B1855-DRIVER WINDOW MOTOR CONTROL CIRCUIT HIGH?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2.(Q321) DRIVER WINDOW EXPRESS DOWN DRIVER CIRCUIT SHORT TO VOLTAGE





Turn the ignition off.

Disconnect the Driver Door Module C1 connector.

Turn the ignition on.

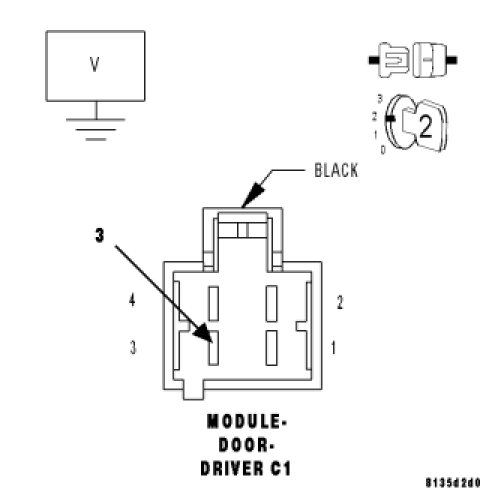

Measure the voltage between the (Q321) Driver Window Express Down Driver circuit and Ground.

Is there any voltage present?

Yes

- Repair the (Q321) Driver Window Express Down Driver circuit for a short to voltage.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 3

3.(Q311) DRIVER WINDOW EXPRESS UP DRIVER CIRCUIT SHORT TO VOLTAGE

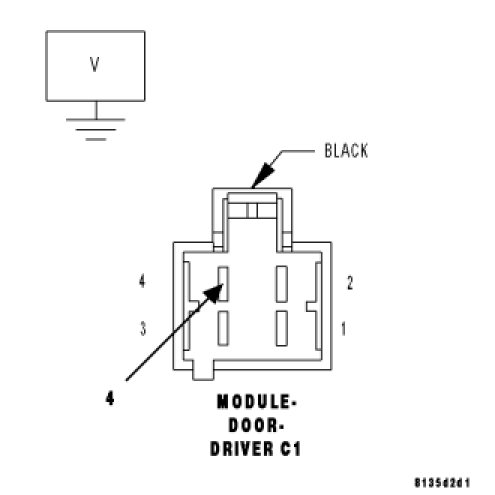

Measure the voltage between the (Q311) Driver Window Express Up Driver circuit and Ground.

Is there any voltage present?

Yes

- Repair the (Q311) Driver Window Express Up Driver circuit for a short to voltage.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Driver Door Module.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
