B167B

B167B-RIGHT FRONT HEADLAMP LIGHT SOURCE CIRCUIT





For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:
- Continuously with the ignition on.
- Set Condition:
- The code will set when the HID Module detects an INOP Headlamp Source.





Diagnostic Test

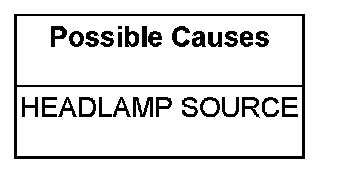

1.Verify DTC B167B-RIGHT FRONT HEADLAMP LIGHT SOURCE CIRCUIT IS ACTIVE

NOTE: If a DTC is set, erase the DTC and attempt to reset the DTC. If the DTC resets, follow test.

This is a Headlamp Source failure

View repair

Does the DTC reset and read B167B-RIGHT FRONT HEADLAMP LIGHT SOURCE CIRCUIT?

Repair

- Replace the appropriate Headlamp Source.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
