B160B

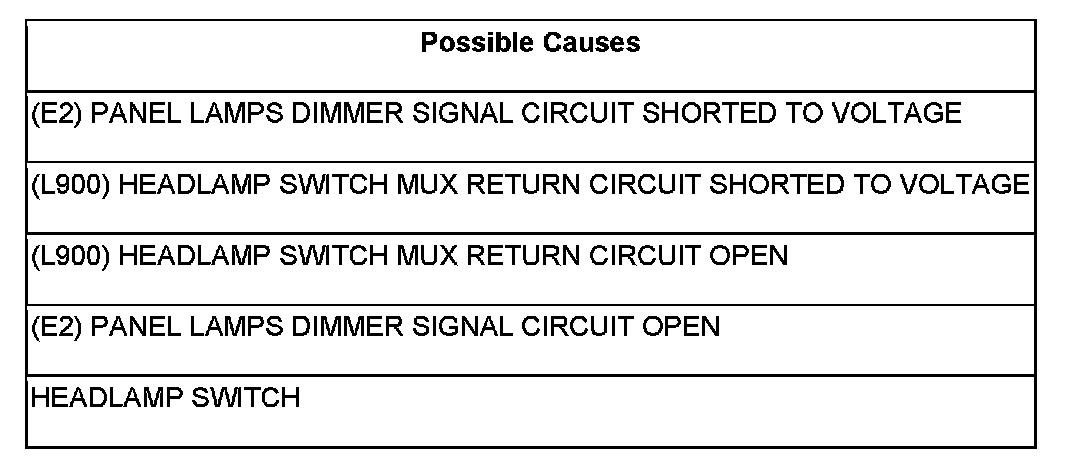

B160B-PANEL DIMMER INPUT CIRCUIT HIGH





For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

With the Instrument Cluster awake.

- Set Condition:

Panel Dimmer Input greater than 4.8 volts.





Diagnostic Test

1.CHECK FOR AN ACTIVE DTC

Turn the ignition on.

With the scan tool, record and erase DTCs.

Activate the Panel Dimmer Switch.

Wait 30 seconds.

With the scan tool, read DTCs.

Is the DTC active?

Yes

- Go To 2

No

- The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

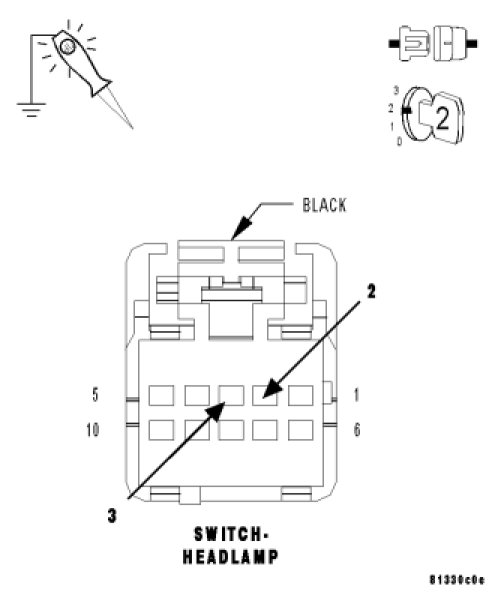

2.CHECK THE (E2) PANEL LAMPS DIMMER SIGNAL CIRCUIT, AND THE (L900) HEADLAMP SWITCH MUX RETURN CIRCUIT FOR A SHORT TO VOLTAGE





Disconnect the Headlamp Switch harness connector.

Turn the ignition on.

Using a test light, measure for voltage on the (E2) Panel Lamps Dimmer Signal circuit.

Using a test light, measure for voltage on the (L900) Headlamp Switch MUX Return circuit.

Is the voltage greater than 5 volts on the E2 or L900 circuit?

Yes

- Repair the E2 or the L900 for a short to voltage.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 3

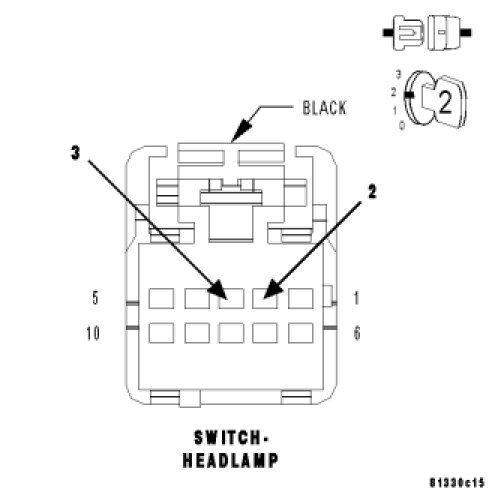

3.CHECK THE OPERATION OF THE PANEL LAMPS DIMMER SWITCH





Connect a jumper wire at the Headlamp Switch harness connector between the (E2) Panel Lamps Dimmer Signal circuit and the (L900) Headlamp Switch MUX Return circuit.

With the scan tool, read DTCs.

Does the Scan tool display-B160A-PANEL DIMMER INPUT CIRCUIT LOW?

Yes

- Replace the Headlamp Switch.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 4

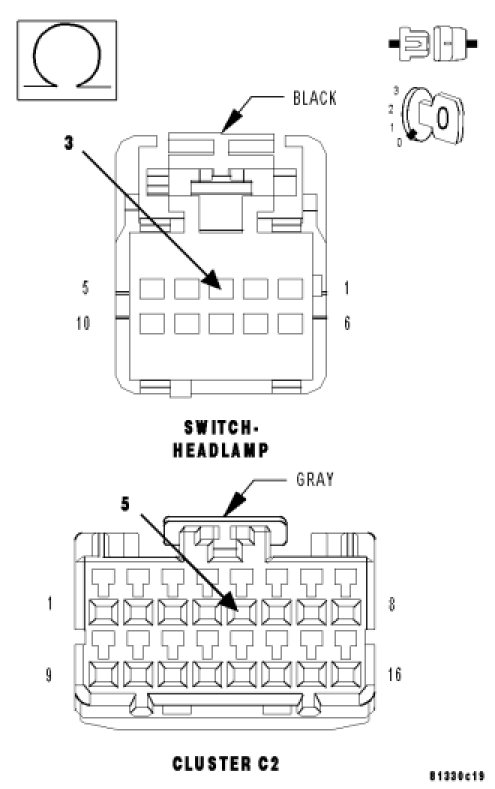

4.CHECK THE (L900) HEADLAMP SWITCH MUX RETURN CIRCUIT FOR AN OPEN





Turn the ignition off.

Disconnect the Instrument Cluster C2 harness connector.

Measure the resistance of the (L900) Headlamp Switch MUX Return circuit between the Instrument Cluster C2 harness connector and the Headlamp Switch harness connector.

Is the resistance above 5.0 ohms?

Yes

- Repair the (L900) Headlamp Switch MUX Return circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 5

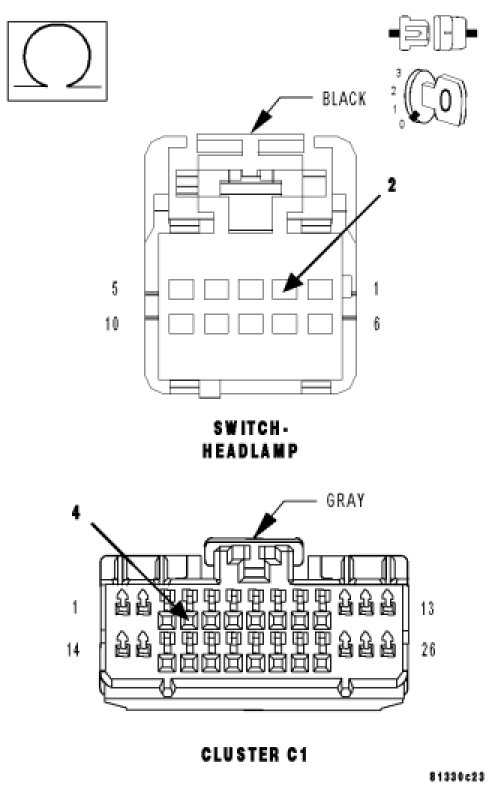

5.CHECK THE (E2) PANEL LAMPS DIMMER SIGNAL CIRCUIT FOR AN OPEN





Disconnect the Instrument Cluster C1 harness connector.

Measure the resistance of the (E2) Panel Lamps Dimmer Signal circuit between the Instrument Cluster C1 harness connector and the Headlamp Switch harness connector.

Is the resistance above 5.0 ohms?

Yes

- Repair the (E2) Panel Lamps Dimmer Signal circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Instrument Cluster.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
