B1094

B1094-FRONT LEFT SEAT HEATER CONTROL CIRCUIT OPEN

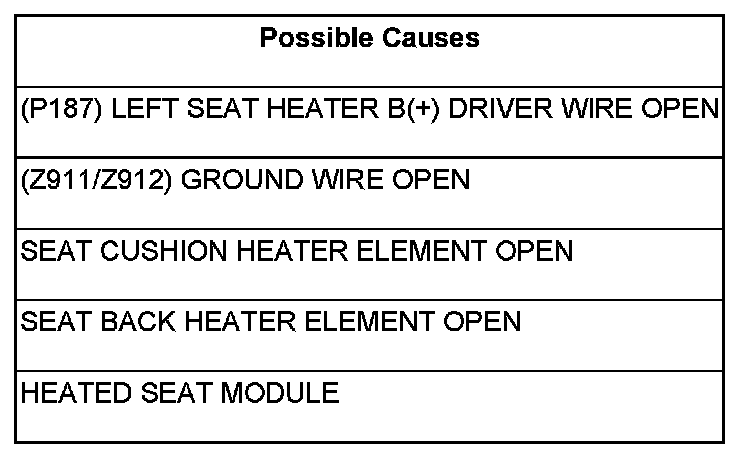

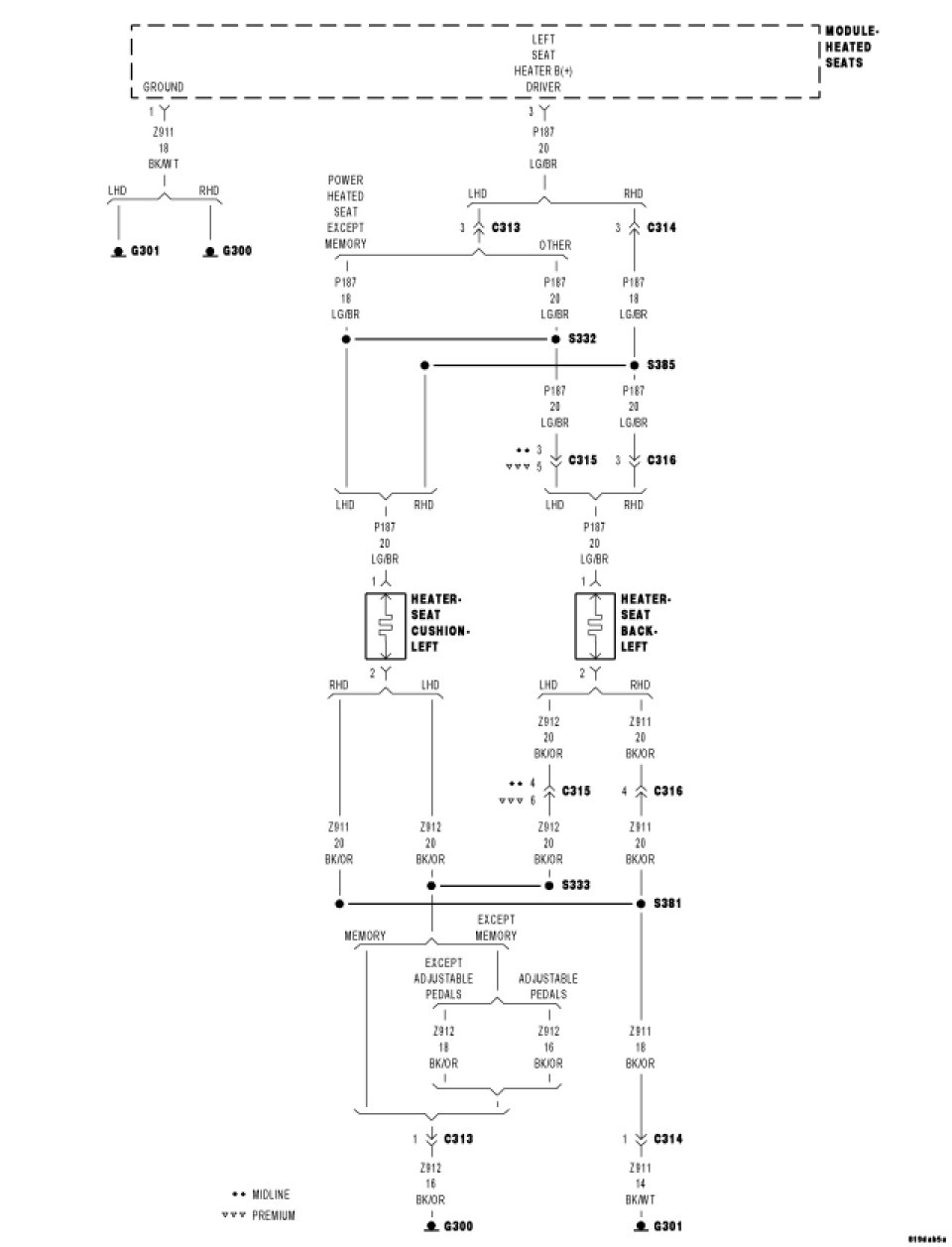

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:Ignition on, during the heated seat operation.
- Set Condition:This code is set immediately after the Heated Seat Module detects an open in the seat heater B(+) driver circuit.





Diagnostic Test

1.VERIFY THAT DTC B1094-FRONT LEFT SEAT HEATER CONTROL CIRCUIT OPEN IS ACTIVE

With the scan tool, record and erase DTC's

Operate the Heated Seat Switch in both positions several times.

With the scan tool, read DTC's.

Does the DTC B1094 FRONT LEFT SEAT HEATER CONTROL CIRCUIT OPEN reset?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2.CHECK FOR AN OPEN SEAT HEATER ELEMENT





Disconnect the Left Seat Cushion Heater 2 - way connector.

NOTE: Check connectors - Clean and repair as necessary.

Measure the total resistance of the cushion and seat back heater elements at the Left Seat Cushion 2 - way connector (seat side).

Is the total resistance 2.5 ohms + or - .5 ohms?

Yes

- Go To 4

No

- Go To 3

3.CHECK THE LEFT SEAT BACK HEATER RESISTANCE





Disconnect the Left Seat Back Heater 2 - way connector.

NOTE: Check connectors - Clean and repair as necessary.

Check the resistance of the seat back heater element by measuring between the (P187) Left Seat Heater B(+) Driver and the Ground circuit at the connector.

Is the resistance above 5.8 ohms?

Yes

- Repair the open pigtail harness or replace the seat back heater element as necessary.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Repair the open pigtail harness or replace the seat cushion heater element as necessary.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

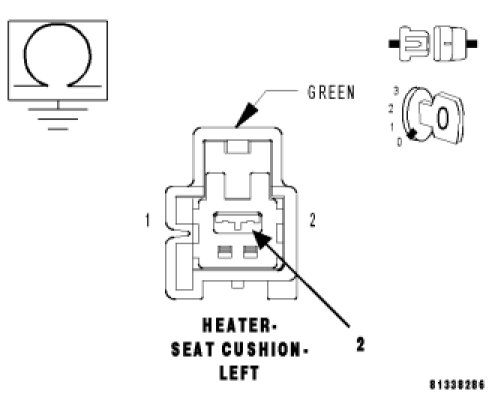

4.CHECK THE LEFT SEAT HEATER (Z911/Z912) GROUND CIRCUIT RESISTANCE





Measure the resistance of the (Z911/Z912) Ground circuit at the Left Seat Heater Cushion 2 - way connector.

Was the resistance below 5.0 ohms?

Yes

- Go To 5

No

- Repair the open (Z911/Z912) Ground circuit.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

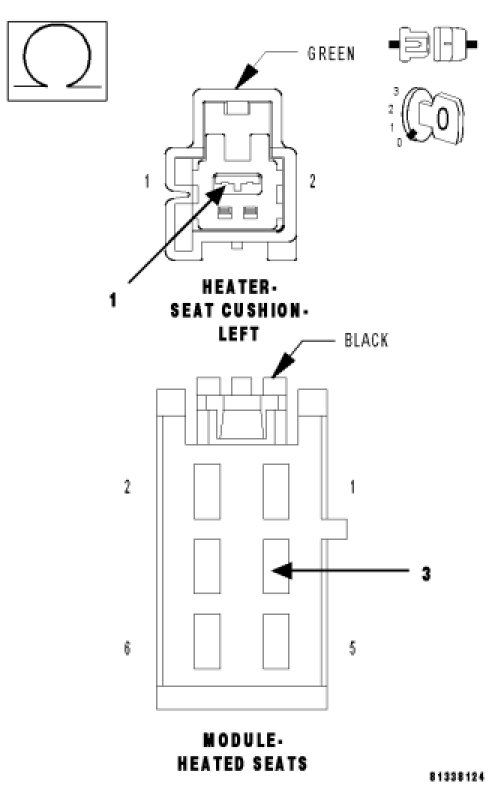

5.CHECK THE (P187) LEFT SEAT HEATER B(+) DRIVER CIRCUIT FOR AN OPEN





Disconnect the Heated Seat Module connector.

NOTE: Check connectors - Clean and repair as necessary.

Measure the (P187) Left Seat Heater B(+) Driver circuit from the Left Seat Cushion Heater 2-way connector (harness side) to the HSM connector.

Is the resistance below 5.0 ohms?

Yes

- Replace the Heated Seat Module.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Repair the (P187) Left Seat Heater B(+) Driver circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
