B1087

B1087-RIGHT HEATED SEAT SWITCH INPUT CIRCUIT/PERFORMANCE





For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:Ignition on, during the heated seat operation.
- Set Condition:This code is set after the Cluster detects the heated seat switch sense circuit low for a predetermined amount of time.





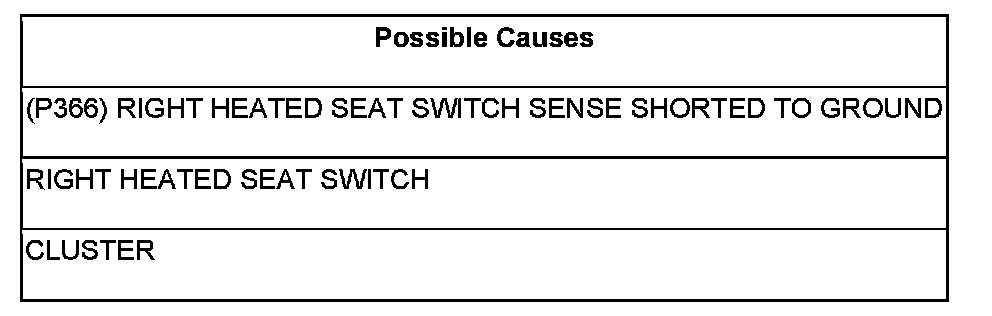

Diagnostic Test

1.VERIFY THAT DTC B1087-RIGHT HEATED SEAT SWITCH INPUT CIRCUIT/PERFORMANCE IS ACTIVE

With the scan tool, record and erase DTC's

Operate the Heated Seat Switch in both positions several times.

With the scan tool, read DTC's.

Is the DTC B1087 RIGHT HEATED SEAT SWITCH INPUT CIRCUIT/PERFORMANCE active?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2.DISCONNECT THE RIGHT HEATED SEAT SWITCH CONNECTOR AND CHECK SWITCH STATUS





Turn the ignition switch off.

Disconnect the Right Heated Seat Switch connector.

NOTE: Check connectors - Clean and repair as necessary.

Turn the ignition on.

With the scan tool in CCN Inputs/Outputs, read the Right Heated Seat state.

Does the switch state display Not Set?

Yes

- Replace the Right Heated Seat Switch.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 3

3.CHECK THE (P366) RIGHT HEATED SEAT SWITCH SENSE CIRCUIT FOR A SHORT TO GROUND





Turn the ignition switch off.

Disconnect the Cluster C3 connector.

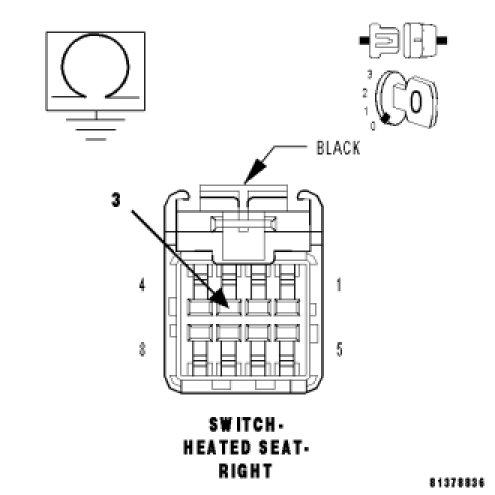

Measure the resistance between ground and the (P366) Right Heated Seat Switch sense circuit.

Was the resistance below 5.0 ohms?

Yes

- Repair the (P366) Right Heated Seat Switch sense circuit for a short to ground
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Cluster.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
