B105B

B105B-RECIRCULATION DOOR CONTROL CIRCUIT OPEN (ATC)





For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

When actuator movement is requested.

- Set Condition:

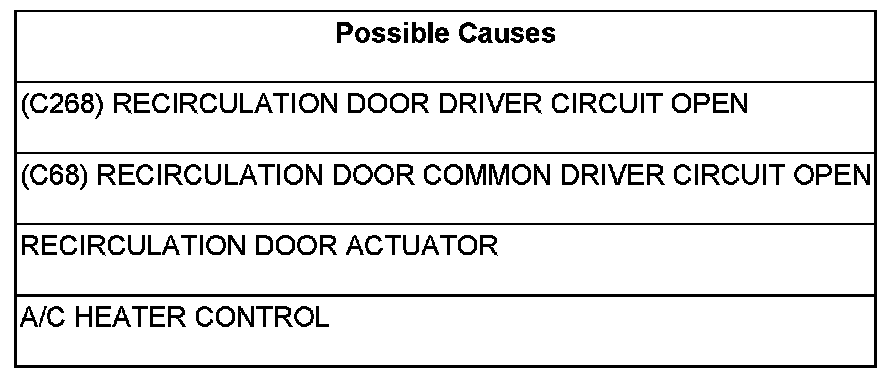

If the (C268) Recirculation Door Driver circuit or the (C68) Recirculation Door Common Driver circuit is open.





Diagnostic Test

1.CHECK FOR ACTIVE CONTROL CIRCUIT/PERFORMANCE DTCs

Turn the ignition on.

With the scan tool, read active HVAC DTCs.

Does the scan tool display any active: XXXX CONTROL CIRCUIT/PERFORMANCE DTCs?

Yes

- Diagnose and repair the DTC(s).

No

- Go To 2

2.CHECK THE RECIRCULATION DOOR ACTUATOR CIRCUIT RESISTANCE





Turn the ignition off.

Disconnect the A/C Heater Control C2 harness connector.

Measure the resistance between the (C268) Recirculation Door Driver circuit and the (C68) Recirculation Door Common Driver circuit in the A/C Heater Control C2 harness connector.

Is the resistance above 70.0 ohms?

Yes

- Go To 3

No

- Replace the A/C Heater Control.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

3.CHECK THE (C268) RECIRCULATION DOOR DRIVER CIRCUIT FOR AN OPEN





Disconnect the Recirculation Door Actuator harness connector.

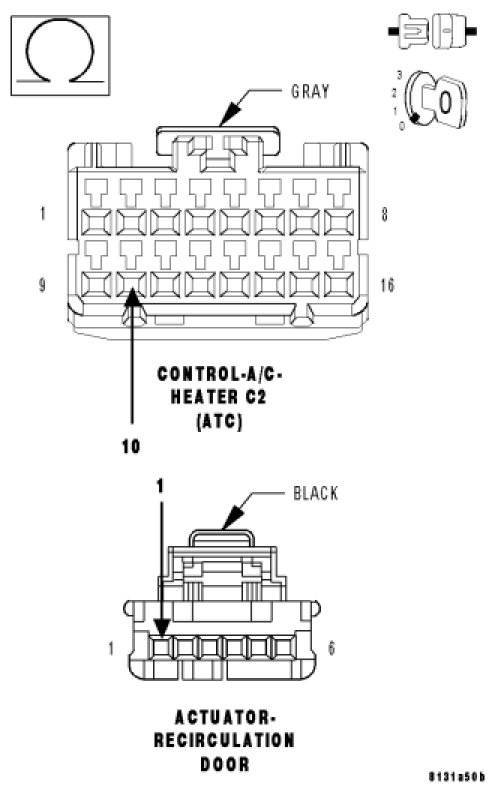

Measure the resistance of the (C268) Recirculation Door Driver circuit between the Recirculation Door Actuator harness connector and the A/C Heater Control C2 harness connector.

Is the resistance below 5.0 ohms?

Yes

- Go To 4

No

- Repair the (C268) Recirculation Door Driver circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

4.CHECK THE (C68) RECIRCULATION DOOR COMMON DRIVER CIRCUIT FOR AN OPEN





Measure the resistance of the (C68) Recirculation Door Common Driver circuit between the Recirculation Door Actuator harness connector and the A/C Heater Control C2 harness connector.

Is the resistance below 5.0 ohms?

Yes

- Replace the Recirculation Door Actuator.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
No

- Repair the (C68) Recirculation Door Common Driver circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
