Removal

CHARGE AIR COOLER




1. Drain cooling system.
2. Remove air cleaner housing.
3. Disconnect negative battery cable.
4. Disconnect positive battery cable.
5. Remove battery and battery tray.

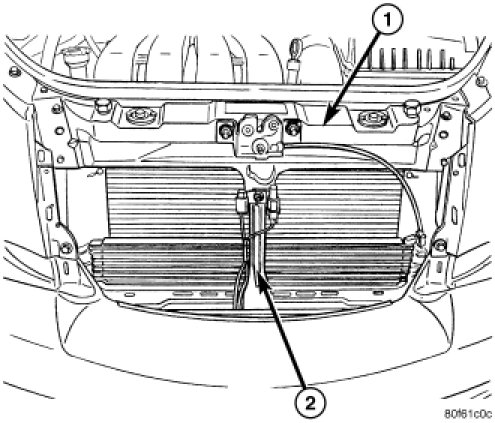

6. Remove upper radiator closure panel (1) and center brace (2).




7. Remove front bumper fascia.
8. Remove front bumper.
9. Loosen charge air cooler hose clamps. Disconnect charge air cooler hoses.
10. Remove radiator fan.
11. Remove charge air cooler fasteners (2).
12. Remove radiator.
13. Remove charge air cooler.
