Removal - Lines And Hoses

REMOVAL - LINES AND HOSES

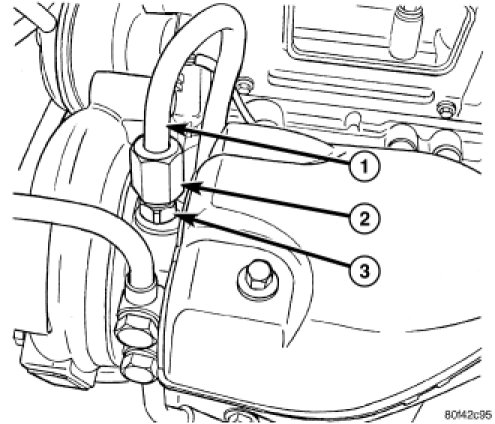

OIL SUPPLY LINE





1. Raise vehicle on hoist.
2. Remove elbow support bracket.
3. Disconnect oil supply line flared fitting from brass fitting at engine block.
4. Lower vehicle.
5. Disconnect oil supply line flared fitting from brass fitting at turbocharger.
6. Remove oil supply line.





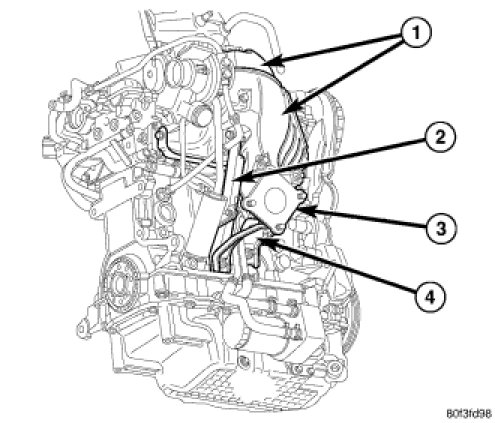

OIL RETURN LINE





1. Raise vehicle on hoist.
2. Remove the two fasteners securing the oil return line to the turbocharger.
3. Remove hose clamp from oil return line.
4. Remove oil return line from crankcase nipple.
