Home >> Dodge >> 2007 >> Caliber L4-2.0L VIN B >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Track >> Service and Repair >> Installation

Installation






INSTALLATION

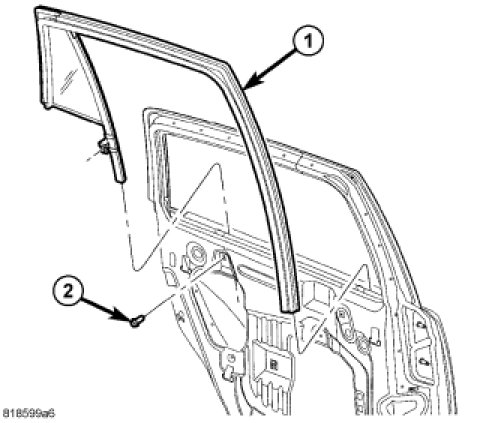

1. Lower glass run into glass run door channel.

2. Install fastener (2).

3. Install door module.
