Home >> Dodge >> 2007 >> Caliber L4-2.0L VIN B >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Regulator >> Rear Door Window Regulator >> Service and Repair >> Removal

Removal






REMOVAL

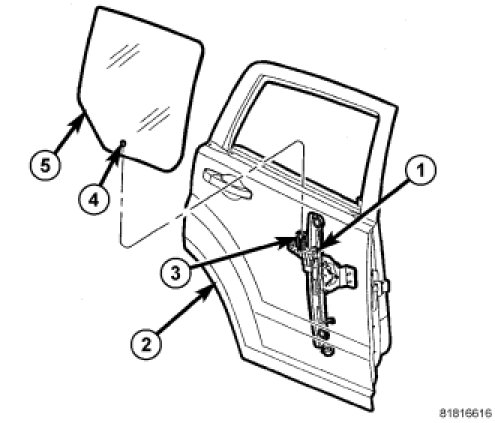

1. Remove door module.

2. Remove door glass (5).

3. Remove fasteners, wire connectors and remove window regulator (1) from door panel.
