Removal

REMOVAL




1. Remove bolster.

2. Remove door plugs.

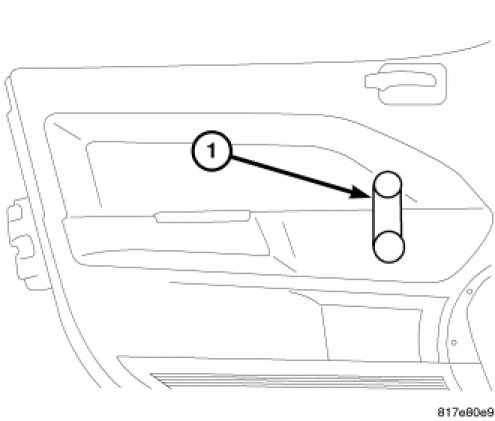

3. If equipped, remove window crank (1).

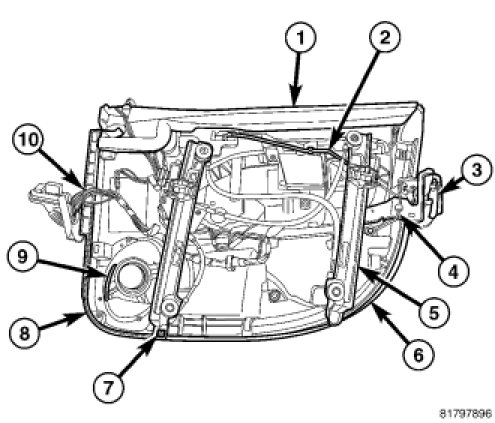

4. Remove glass.

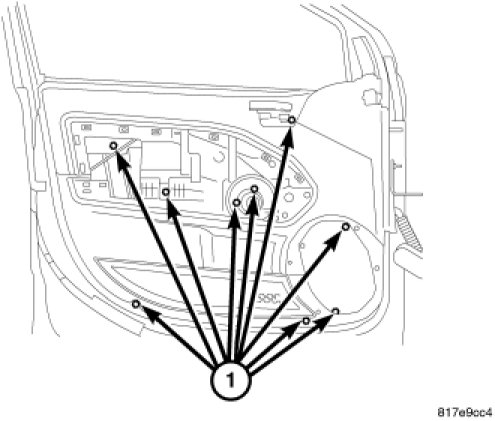

5. Remove power motor attachment screws (1) from front side of trim panel. (For manual windows only, unsnap manual drive from drum housing).





6. Remove lower attachment bolts through front side of trim panel for Window Regulator rails (7).


CAUTION: Use care when disconnecting connectors to avoid damaging components.

7. Disconnect wire harness (10) from power motor on back of trim panel.

8. Remove rails for towers on back side of trim panel.

9. Remove window regulator (5) from trim panel.
