Installation






INSTALLATION

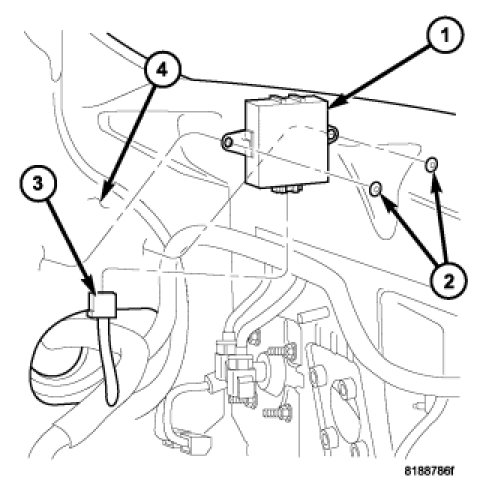

1. Plug ECC module in (3).

2. Move into place, install bolts (2) and tighten to 11 Nm (97 in. lbs.).

3. Install the left front kick panel.
