REMOVAL

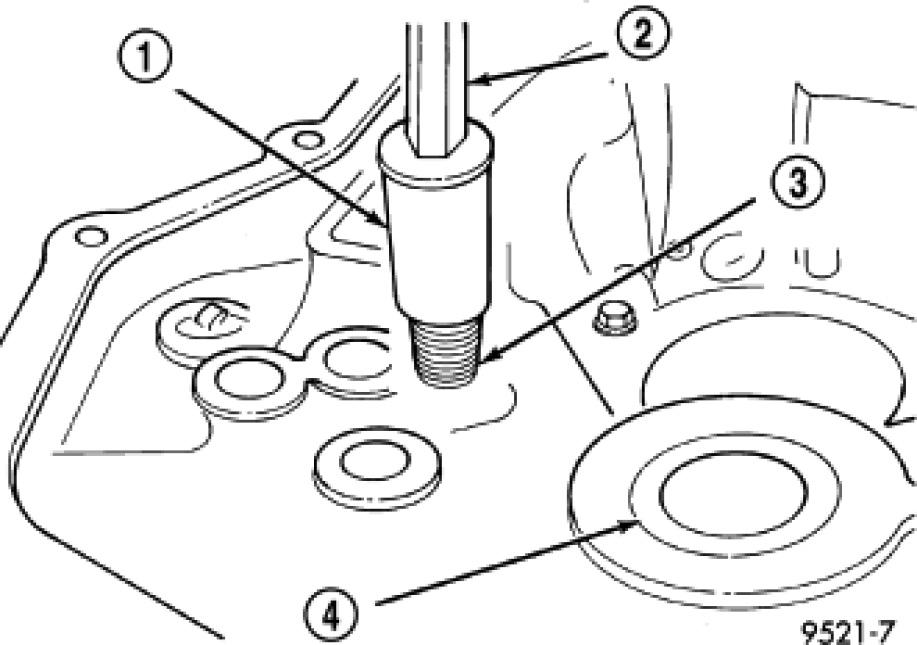

1.
Thread Remover 6786 (1) into
shift rail
bushing.
2.
Install slide hammer C-3752 (2) onto tool.
3.
Remove bushing (3) using slide hammer and tool assembly.
