Installation

INSTALLATION





CAUTION: Gearshift cable bushings must not be lubricated or the bushings will swell and split.

1. Install cable assembly through floor pan opening until grommet is seated.
2. Route transaxle end of cable assembly into engine compartment and over transaxle assembly.
3. Install cables (1) and NEW retaining clips to bracket.




4. Install gearshift cables to mounting bracket and fasten with NEW clips (2). Make sure clips are installed flush to bracket.

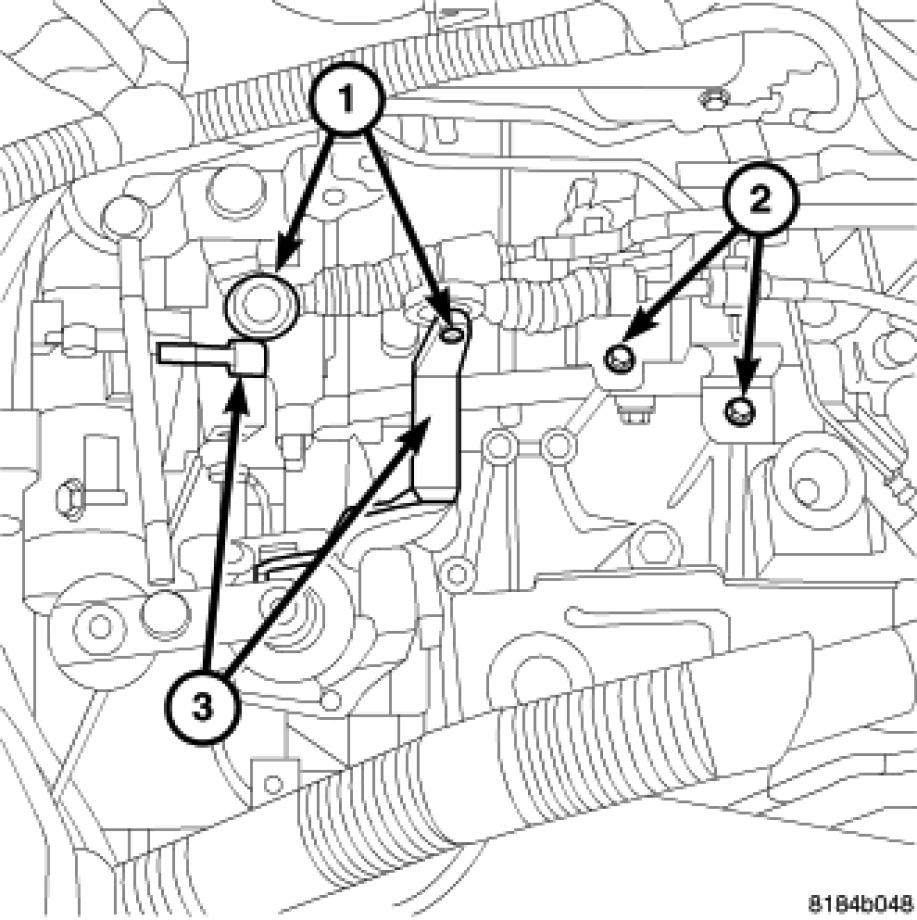

5. Connect cables (1) to the shift levers (3) at the transaxle.
6. Install ORC.
7. Install shifter.
8. Install battery tray.
9. Install battery and hold-down clamp.
10. Install the air cleaner assembly.
11. Connect battery cables.
