Shift Cable: Adjustments

ADJUSTMENT

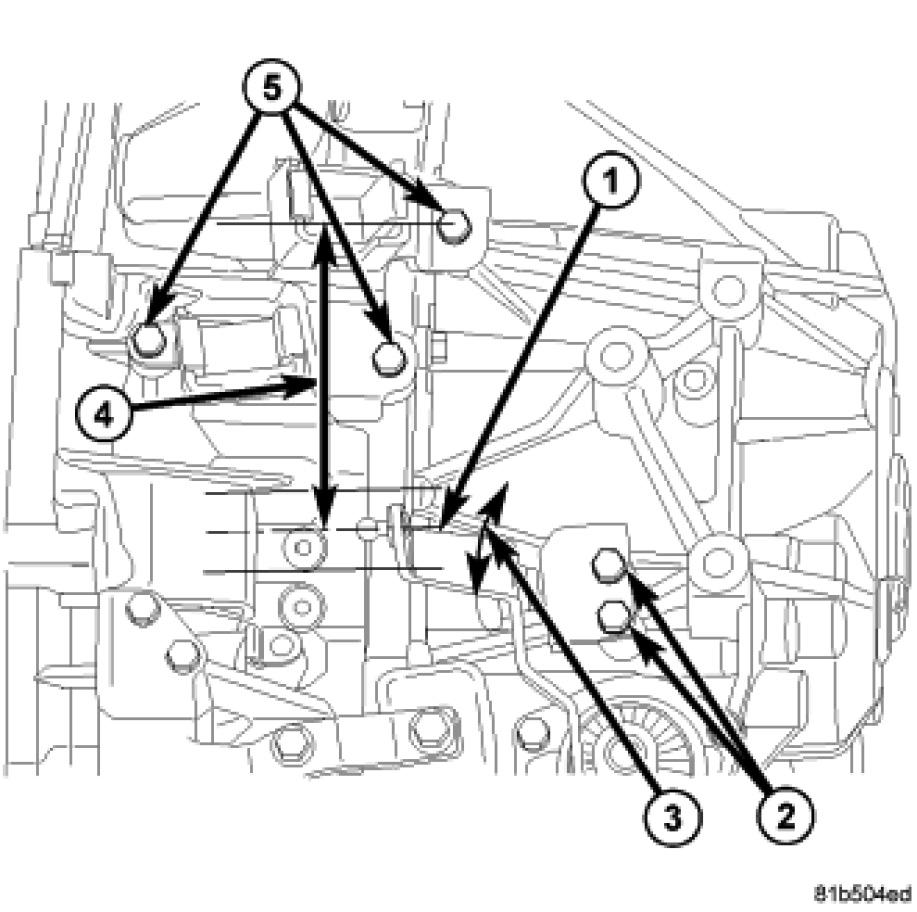

Increase the (4) distance to eliminate 2nd gear downshift blocking condition (3 - 2, or 4 - 2 blocking).


NOTE: Must verify reverse shift after adjusting.

Decrease the distance if shifter can not engage reverse.

1. Loosen select lever bracket bolts (2).
2. Adjust gage length fore/aft by pivoting bracket and re-securing. Torque to 21.4 +/- 5.2 Nm.
