T355 Manual Transaxle
>>
Shift Shaft Bushing
>>
Removal
Removal
REMOVAL
1.
Remove shift shaft.
2.

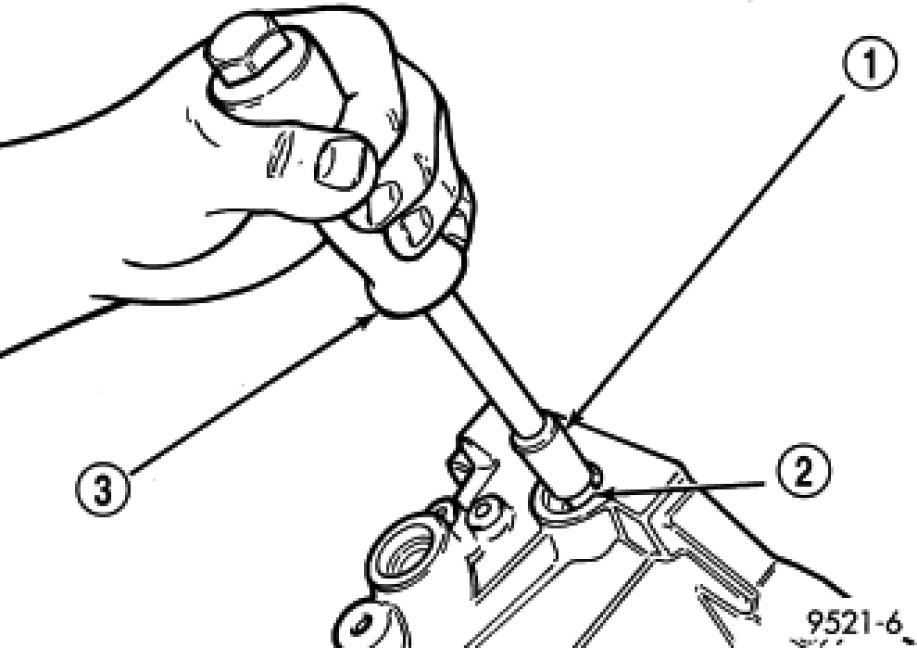

Thread Remover 6786 (1) into bushing.
3.
Install slide hammer C-3752 (3) onto tool and remove bushing (2) using slide hammer.
