INSTALLATION
1.
Position replacement bushing over shift shaft bore.
2.

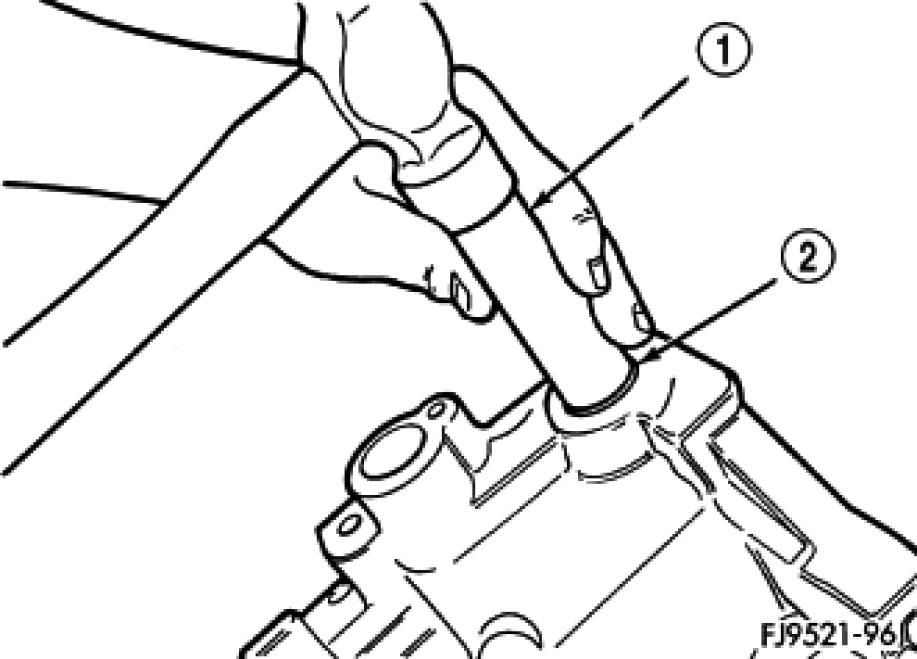

Using an appropriate size deep-well socket (1), install bushing (2) in selector shaft bore.
