Home >> Dodge >> 2007 >> Caliber L4-2.0L VIN B >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Service and Repair >> Removal and Replacement >> T355 Manual Transaxle >> Overhaul (Subassemblies) >> Output Bearing and Race >> Removal

Removal






REMOVAL

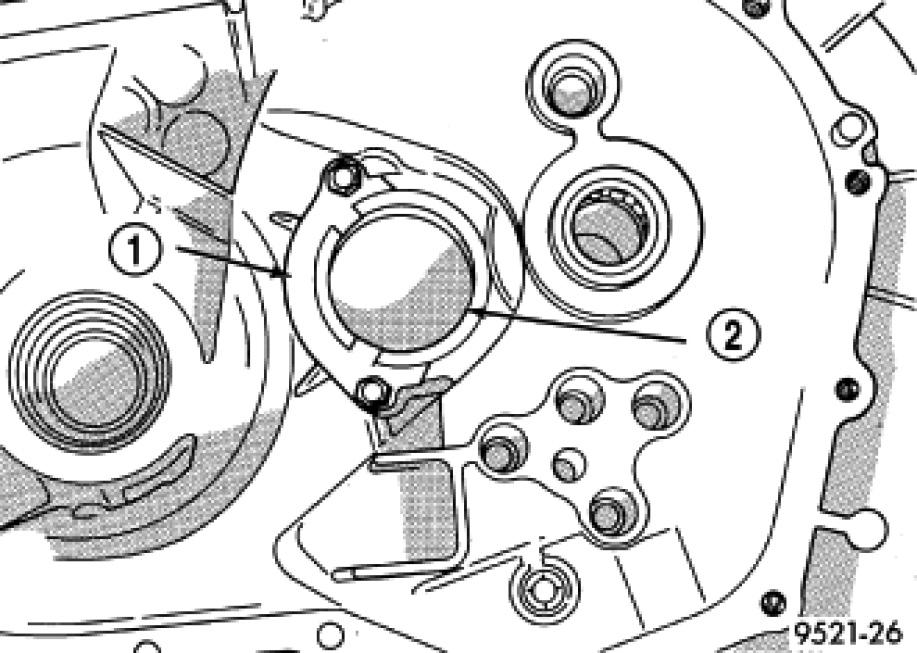

1. Remove screws at output bearing retainer strap (1).

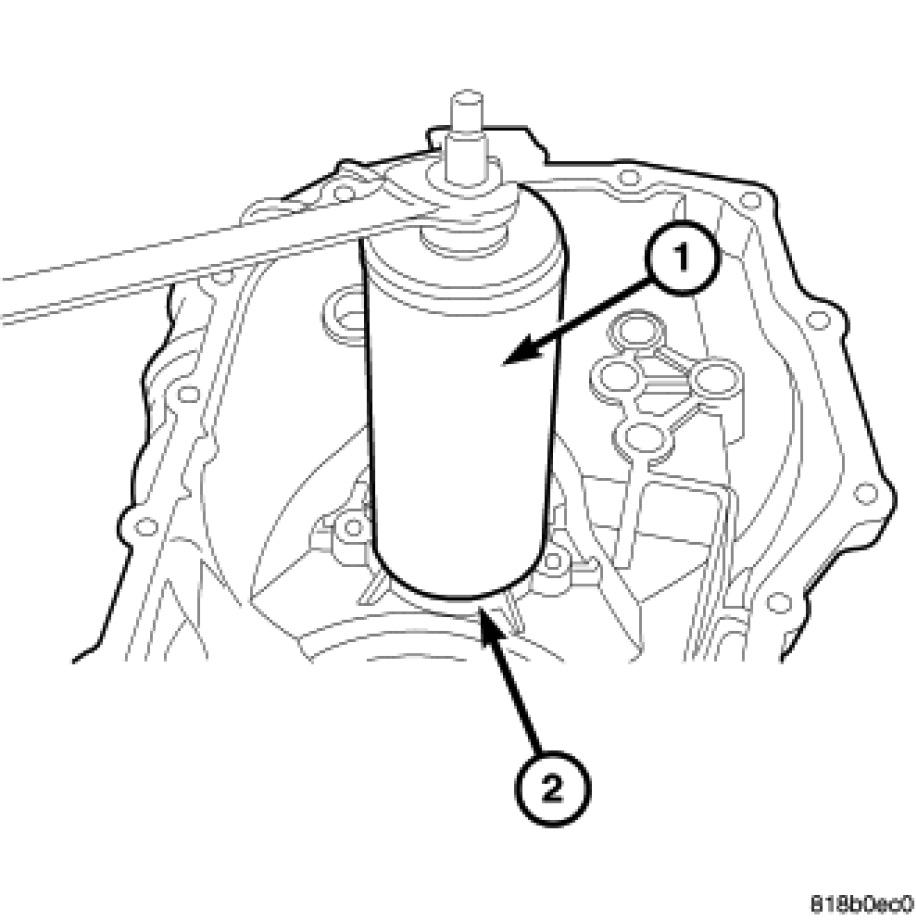

2. Install Puller L-4518 (1) and remove output bearing (2).
