Removal

REMOVAL




1. Remove differential assembly from gear case (2).

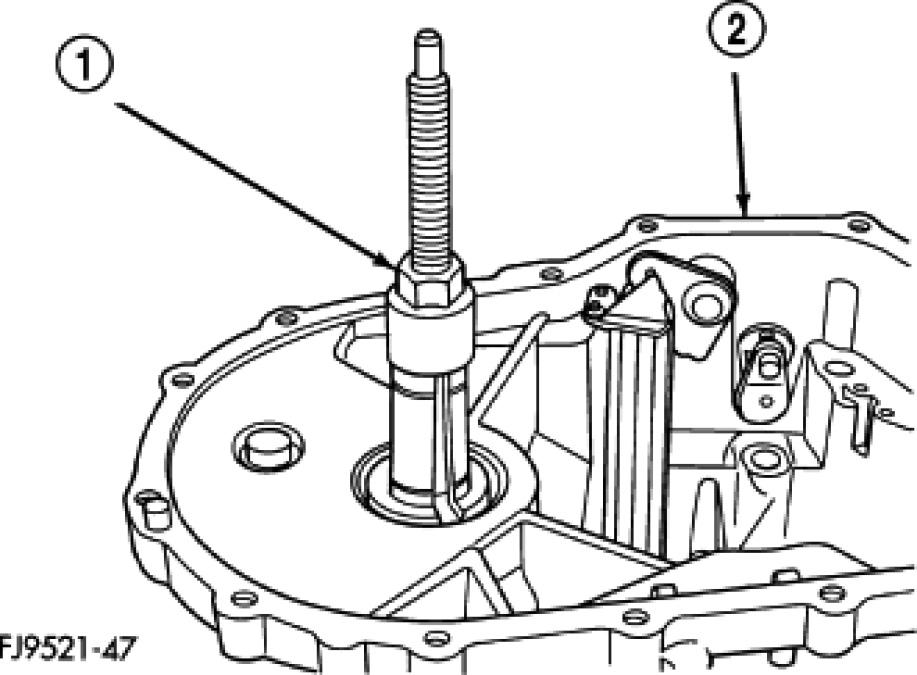

2. Install Remover L-4518 (1) into the differential bearing cup.




3. Install the tool cup (2) over the tool.
4. Tighten the tool until the race is removed from the case.
