Disassembly

DISASSEMBLY

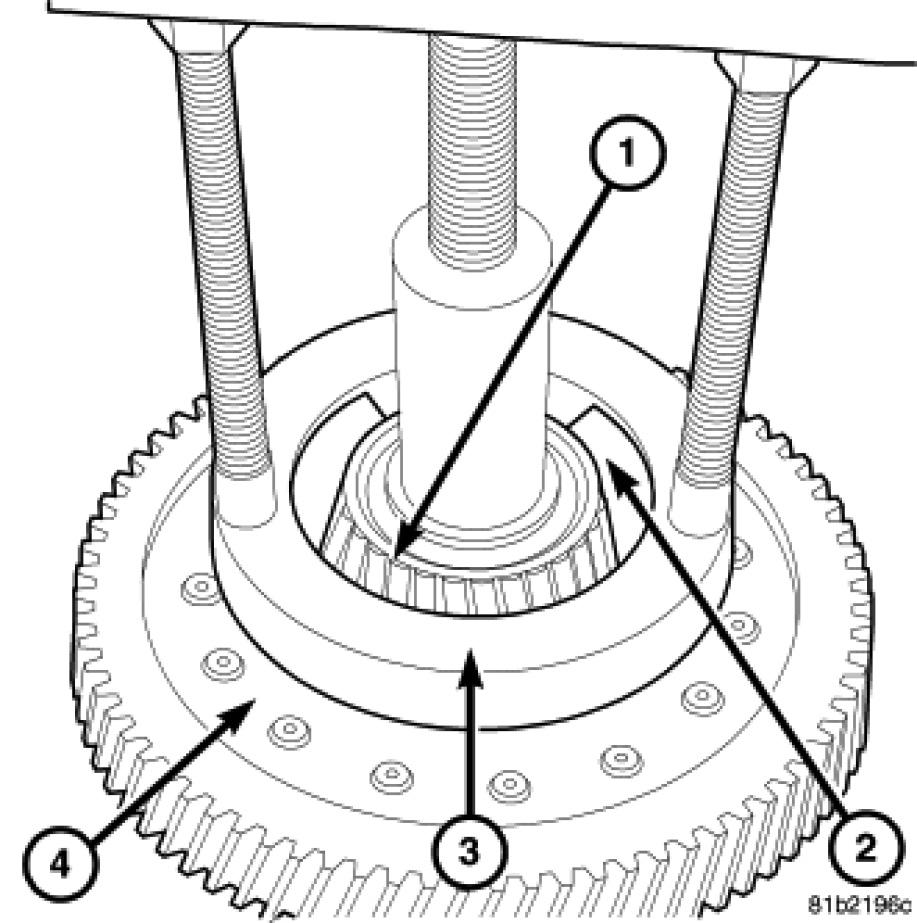

1. Use Plug C-293-3, Puller/Press C-293-PA (3), and Puller Adapters 9613 (2) on ring gear side (4) to remove the pinion side bearing (1).

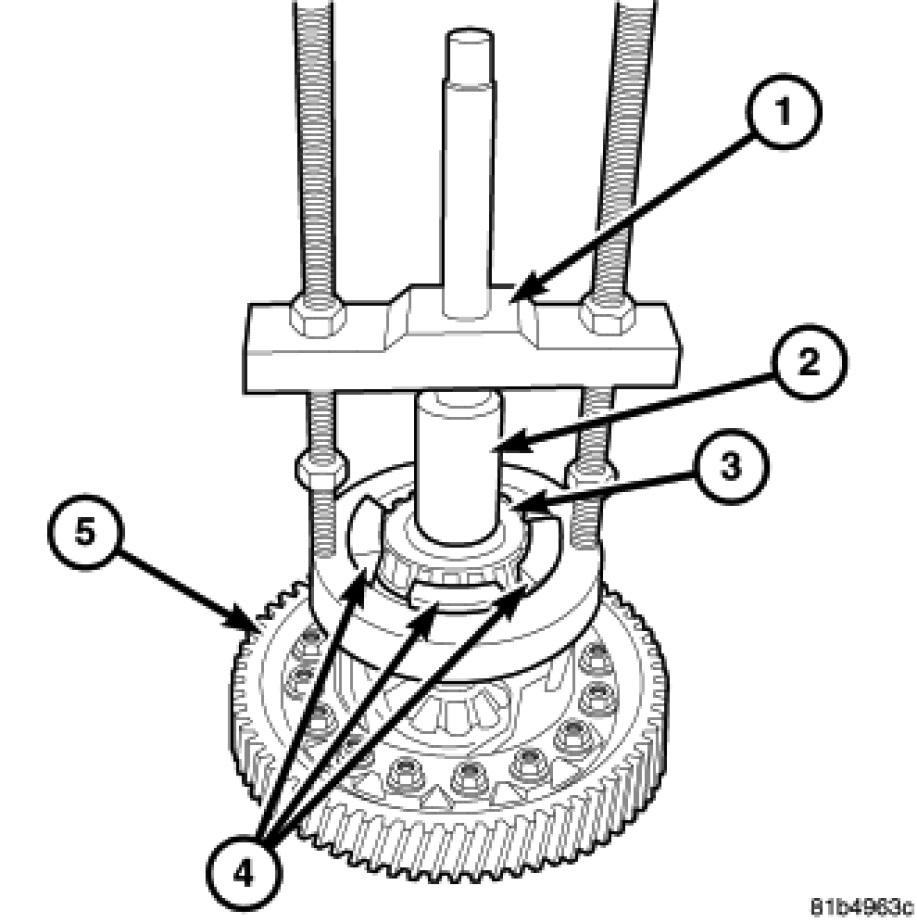

2. Use Plug C-293-3, Puller/Press C-293-PA (1) and Adapters C-293-37 (4) on pinion side with 2WD. Use Puller Adapters 9614 (4), Puller/Press C-293-PA (1) and Remover C-4656 as a plug on pinion side with a AWD to remove pinion side bearing (1).




3. Remove the bolts at the ring gear.
4. Remove the ring gear by taping with a soft face hammer.
