Description

DESCRIPTION

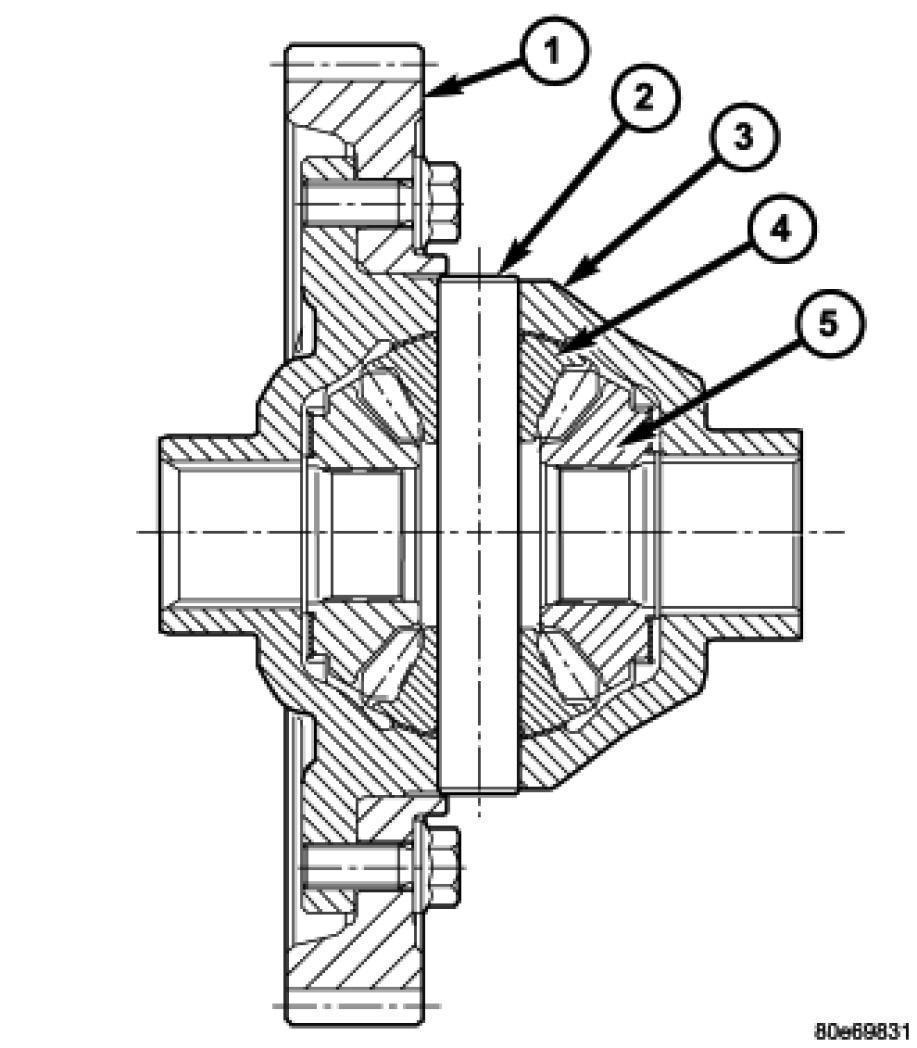

The BG6 differential is a conventional open design, and is integral to the transaxle. It consists of a single-piece case (3), which houses pinion (4) and side gears (5). A pinion shaft (2) is retained by the differential ring gear (1) and roll pin, The differential case is supported in the transaxle by tapered roller bearings.
