Removal

REMOVAL




1. Raise the vehicle on the hoist.

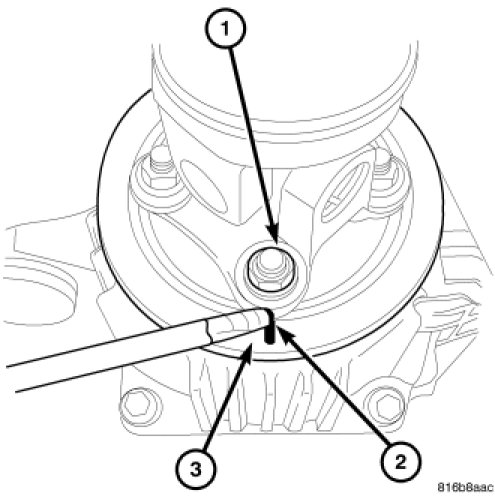

2. Mark (2) propeller shaft and differential (3) for proper installation.

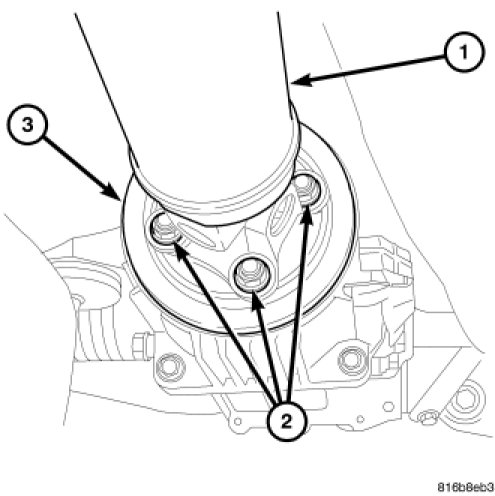

3. Remove rear propeller shaft to rear axle retaining nuts (2).

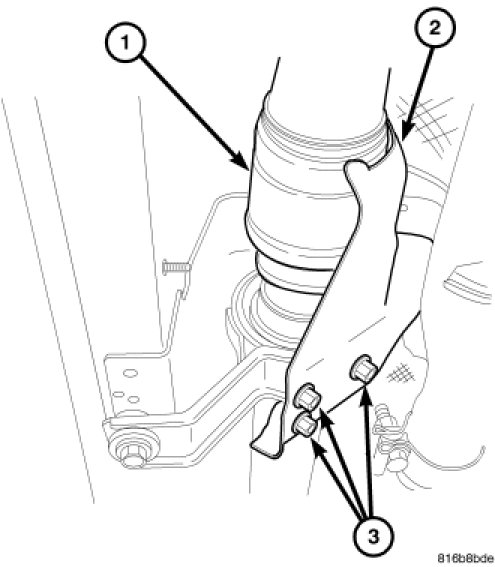

4. Remove the three bolts (3) from the center support heat shield (2).





CAUTION: Propeller shaft removal. Never allow propeller shaft to hang while connected to Power Transfer Unit (PTU), rear driveline module flanges or center bearings. If propeller shaft section is hung unsupported, damage may occur to joint, boot and/or center bearing from over-angulation. This may result in vibration/balance issues. A helper may be needed.

5. Remove the heat shield (2).

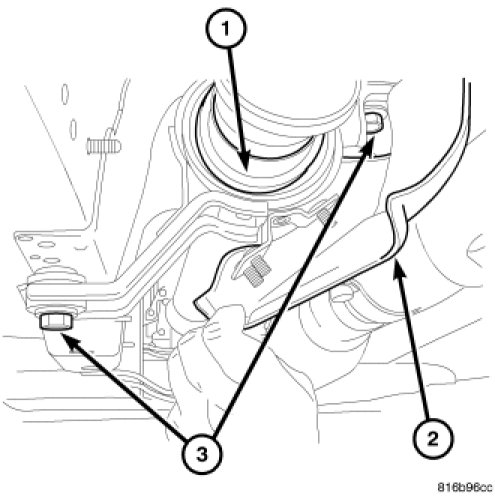

6. Remove the two center support mounting bolts (3).




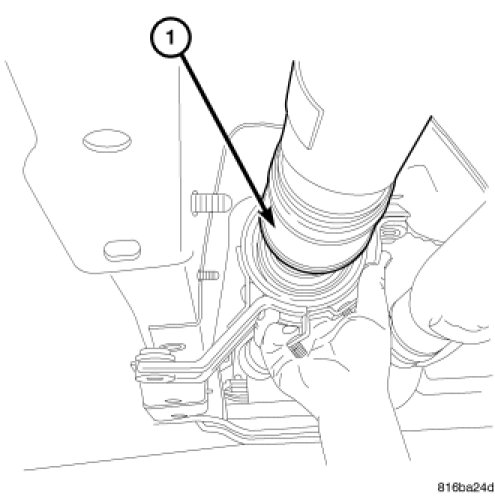

7. Remove the propeller shaft (1).
