Installation

INSTALLATION

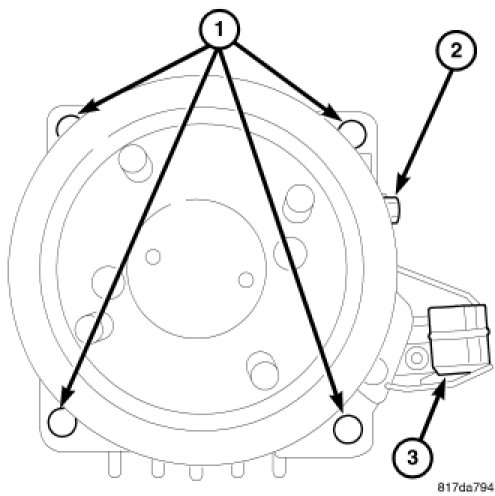

1. Slide ECC into rear axle.
2. Install the four ECC mounting bolts and tighten to 68 Nm (50 ft. lbs.).
3. Plug the electrical connector (3) in.
4. Install the routing bracket bolt and tighten to 14 Nm (124 in. lbs.).
5. Install the rear propeller shaft.
6. Install the exhaust system.
