Removal

REMOVAL




1. Remove front fascia.
2. Recover refrigerant.
3. Disconnect A/C lines.

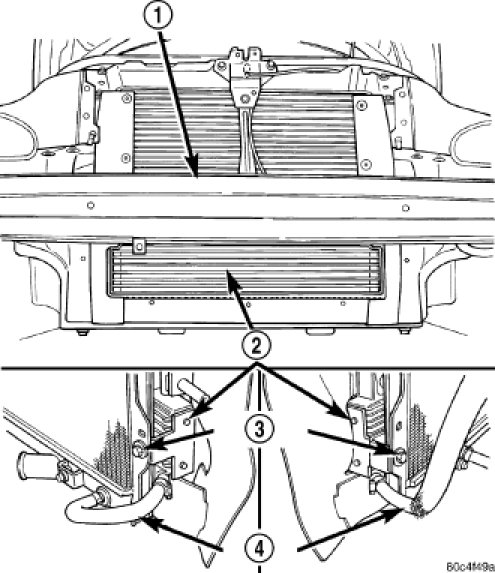

4. Using Tool 8875A disconnect cooler line from the combination cooler.
5. Remove combination cooler mounting bolts.
6. Remove combination cooler (2).
