Home >> Dodge >> 2007 >> Caliber L4-2.0L VIN B >> Repair and Diagnosis >> Transmission and Drivetrain >> Continuously Variable Transmission/Transaxle >> Testing and Inspection >> Pressure Tests

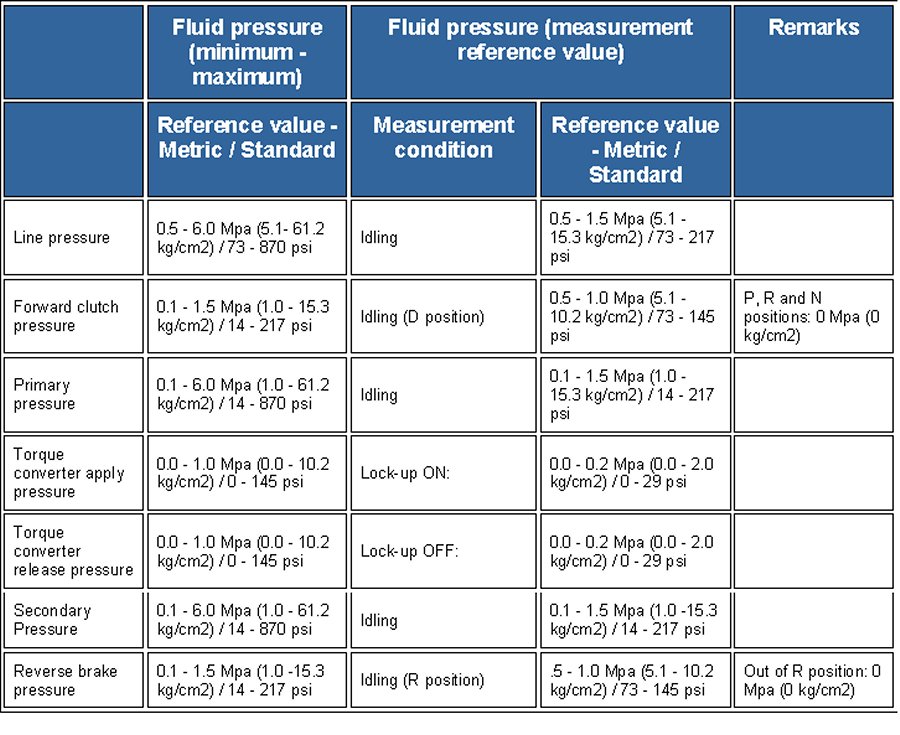

Pressure Tests

rwk_23382
12/4/09
Tech Auth ch.21

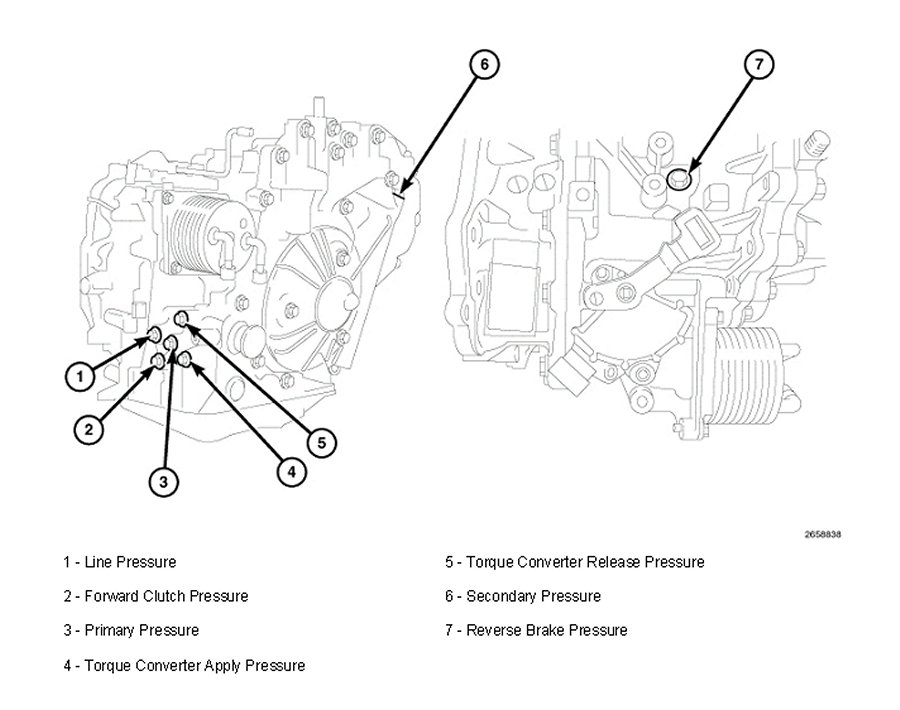

TEST PORTS
