Shifter CVT: Diagrams

Component ID: 13
Component : ASSEMBLY-SHIFT LEVER

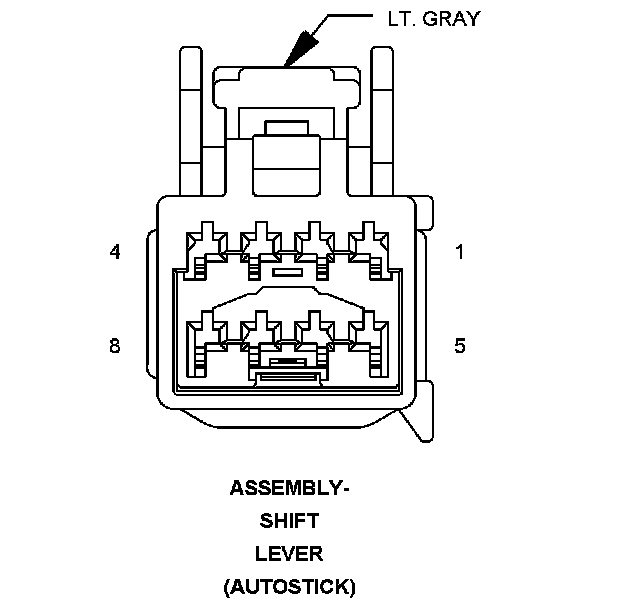

Connector:
Name : ASSEMBLY-SHIFT LEVER
Color : LT. GRAY
# of pins : 8
Qualifier : (AUTOSTICK)




Pin Description Circuit
1 AUTOSTICK UPSHIFT SIGNAL T5 20DG/LG
2 - -
3 GROUND Z937 20BK/YL
3 GROUND Z941 20BK/WT
4 PANEL LAMPS DRIVER E12 20OR/GY
5 AUTOSTICK DOWNSHIFT SIGNAL T44 20YL/DG
6 GROUND Z937 20BK/YL
6 GROUND Z941 20BK/WT
7 GROUND Z937 20BK/YL
7 GROUND Z941 20BK/WT
8 BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID UNLOCK K321 20BR/YL

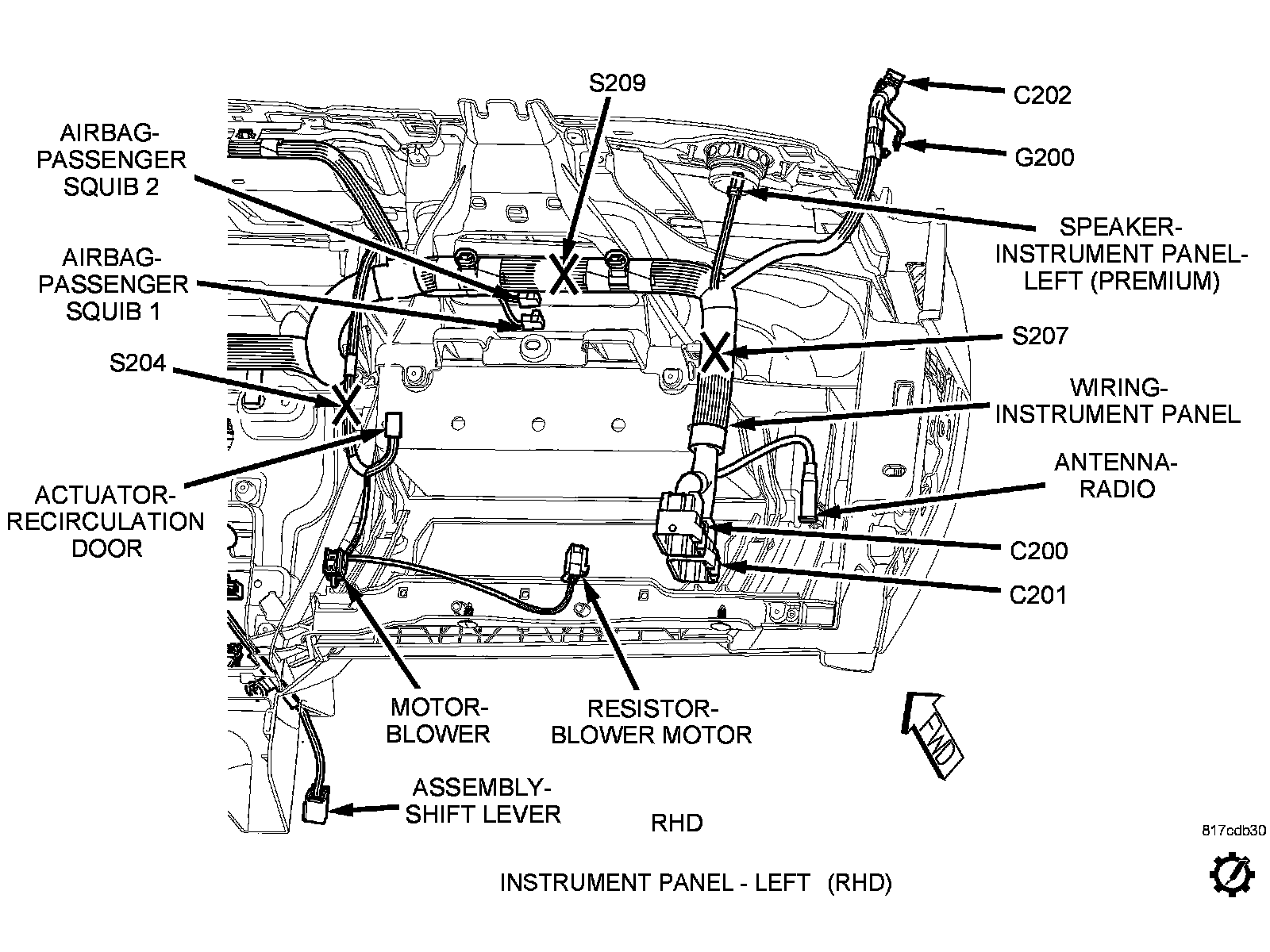

Component Location - 24




Component Location - 26




Component Location - 30




Component Location - 31




Component Location - 32




Component Location - 35

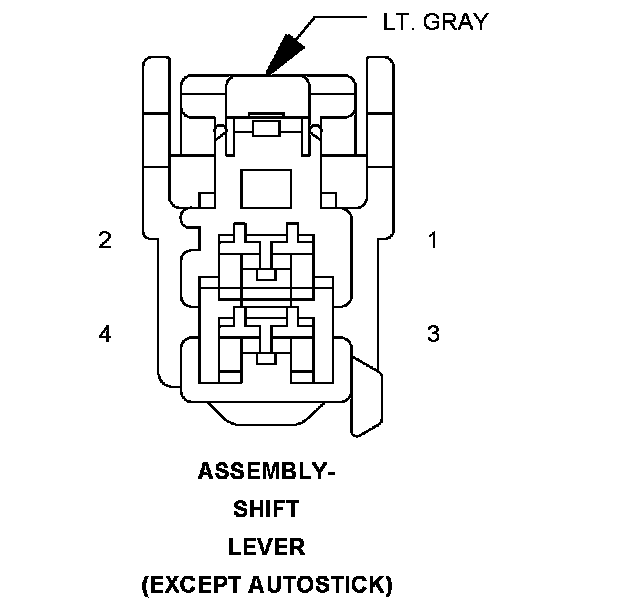

Connector:
Name : ASSEMBLY-SHIFT LEVER
Color : LT. GRAY
# of pins : 4
Qualifier : (EXCEPT AUTOSTICK)




Pin Description Circuit
1 GROUND Z937 20BK/YL
2 PANEL LAMPS DRIVER E12 20OR/GY
3 GROUND Z937 20BK/YL
4 BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID UNLOCK K321 20BR/YL

Component Location - 24




Component Location - 26




Component Location - 30




Component Location - 31




Component Location - 32




Component Location - 35
