Removal






REMOVAL

1. Remove halfshaft.
2. If all wheel drive remove the PTU.

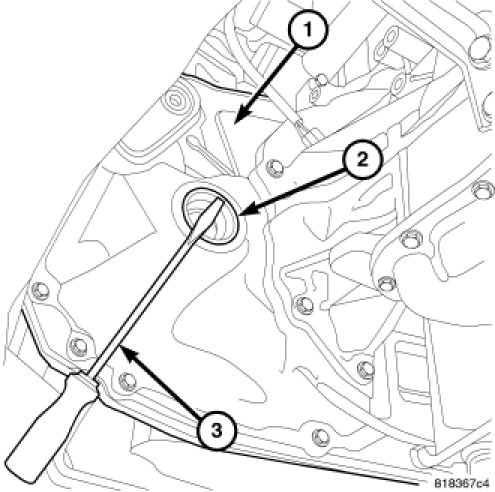

3. Remove the seal (2) form the transaxle using a screwdriver (3).
