Installation






INSTALLATION

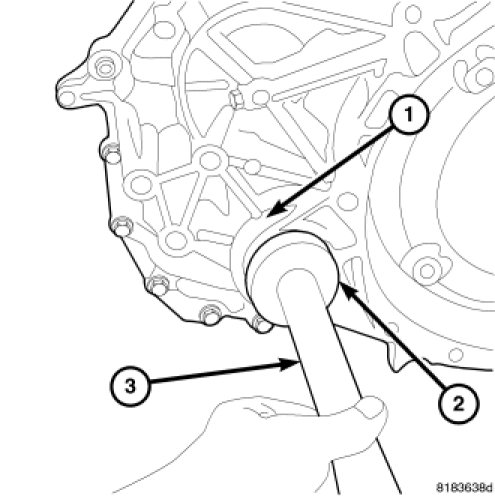

1. Install the seal using Installer 9877(2) and Handle C-4171 (3).
2. If all wheel drive install the PTU.
3. Install Halfshaft.
4. Road test vehicle and inspect for leaks.
