Installation

INSTALLATION

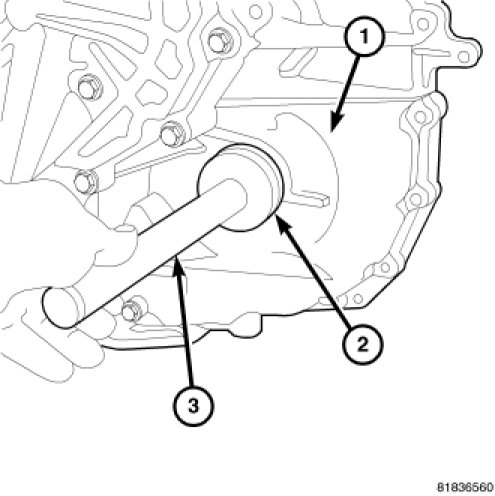

1. Install the left side differential oil seal using Installer 9871 (2) and Handle C-4171 (3).
2. Install halfshaft.
3. Road test vehicle and inspect for leaks.
