Installation






INSTALLATION

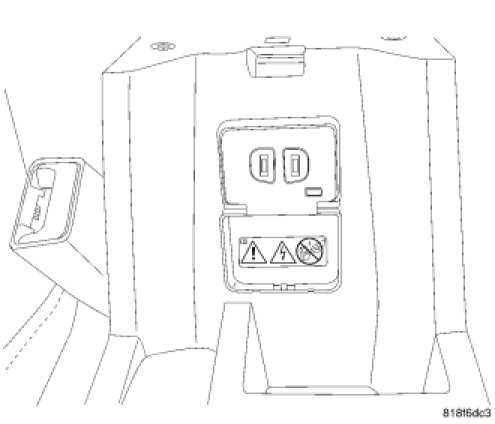

1. Install the AC power outlet.

2. Connect electrical connector.

3. Install the center console.

4. Connect the battery negative cable.
