Power Outlet-Instrument Panel

Component ID: 176
Component : POWER OUTLET-INSTRUMENT PANEL

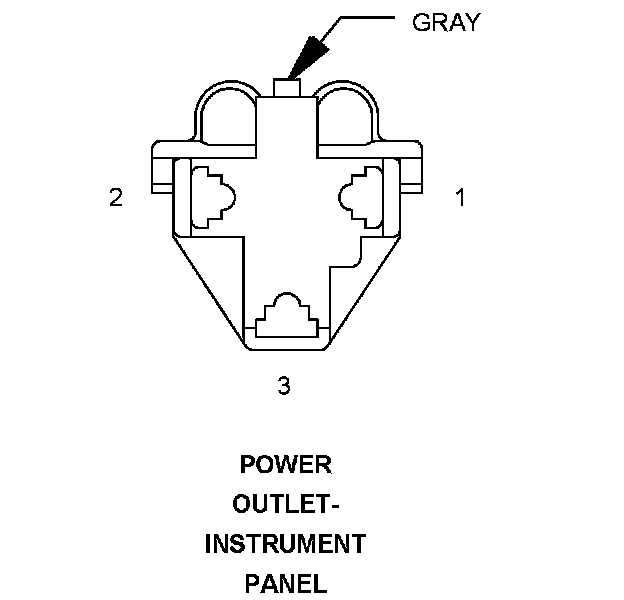

Connector:
Name : POWER OUTLET-INSTRUMENT PANEL
Color : GRAY
# of pins : 3




Pin Description Circuit
1 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F986 20PK/BK
2 - -
3 GROUND Z940 20BK/LG

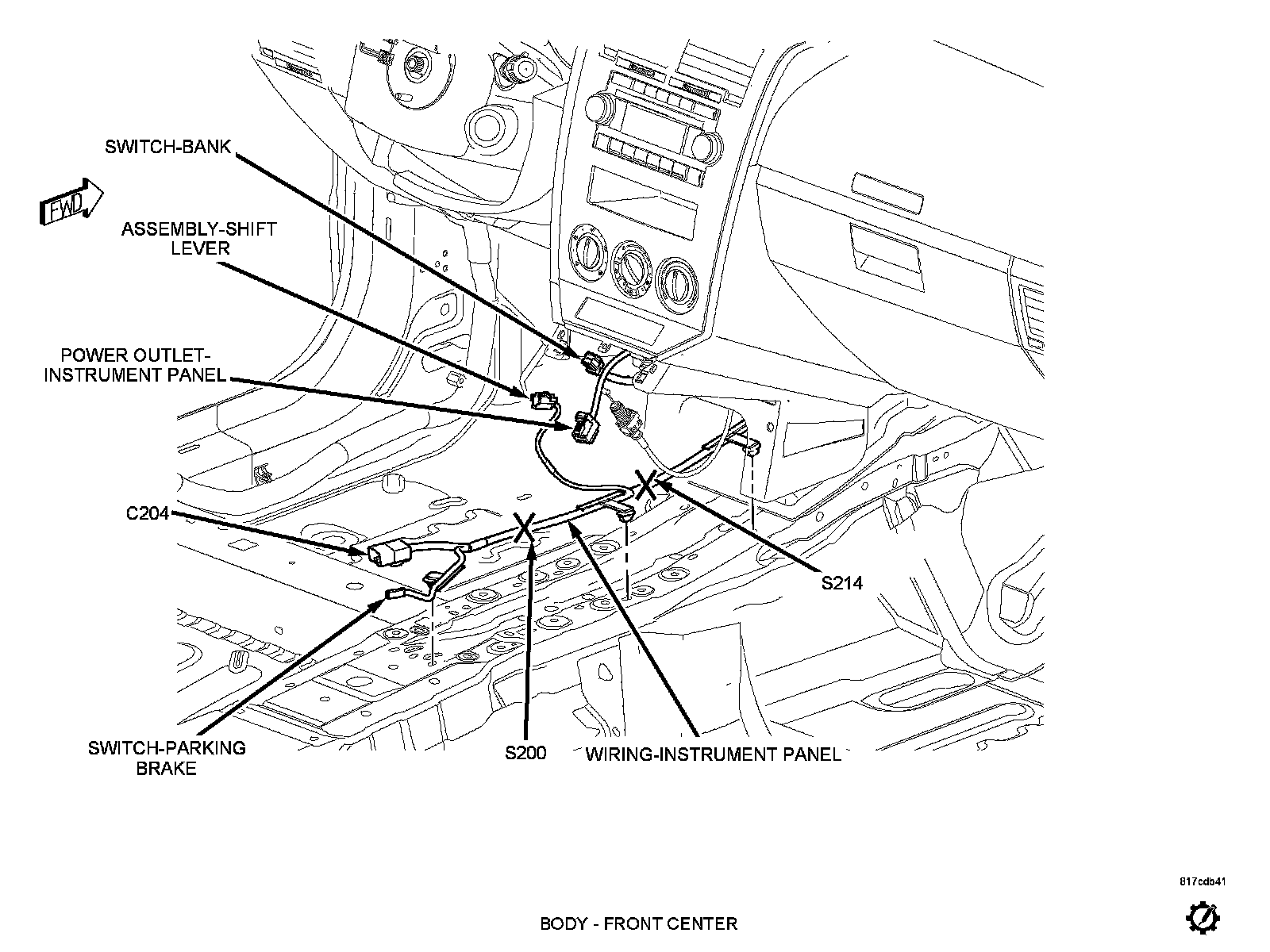

Component Location - 35
