Engine Torque Specifications






TORQUE

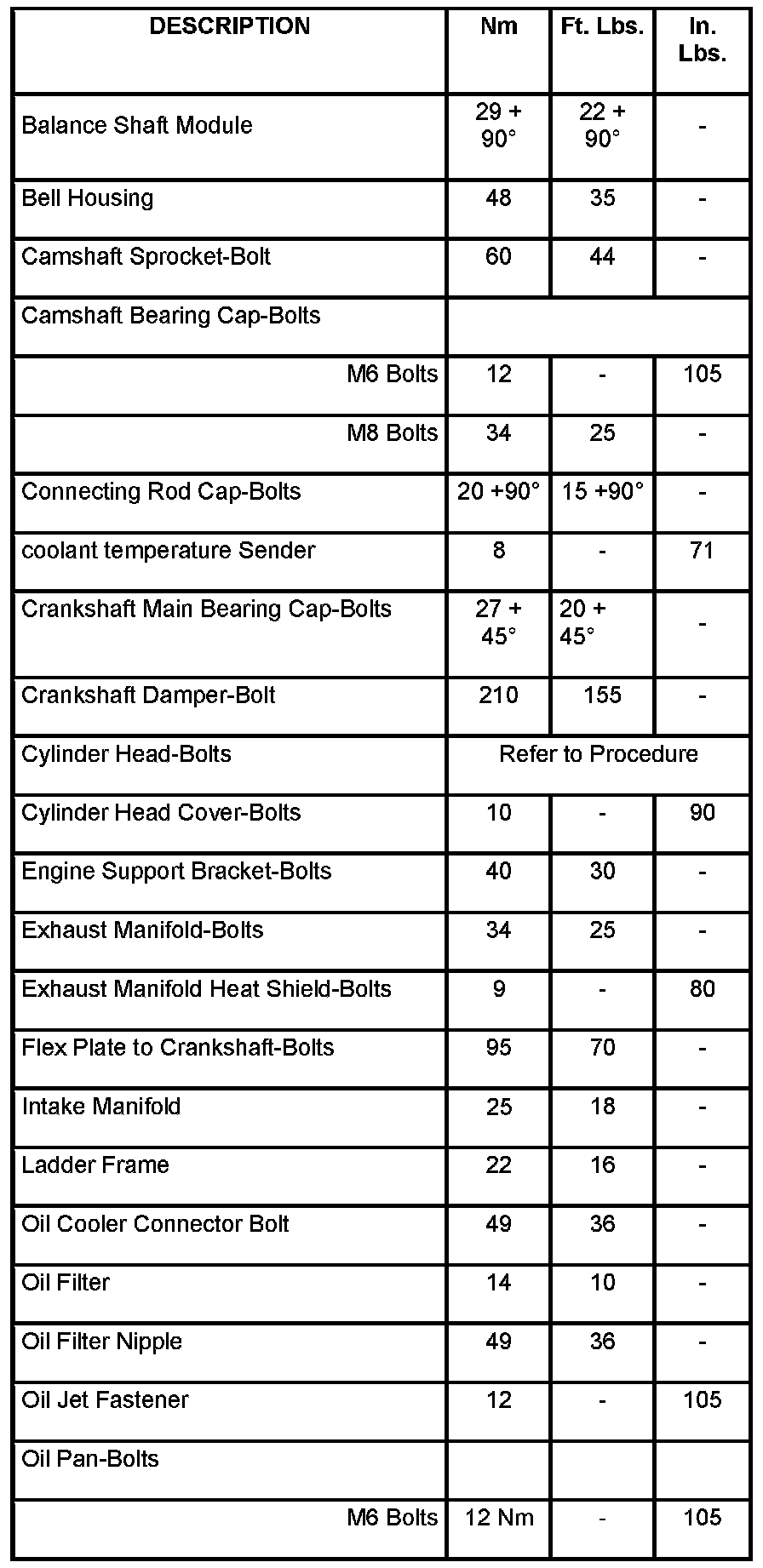

Torque (Part 1):





Torque (Part 1)

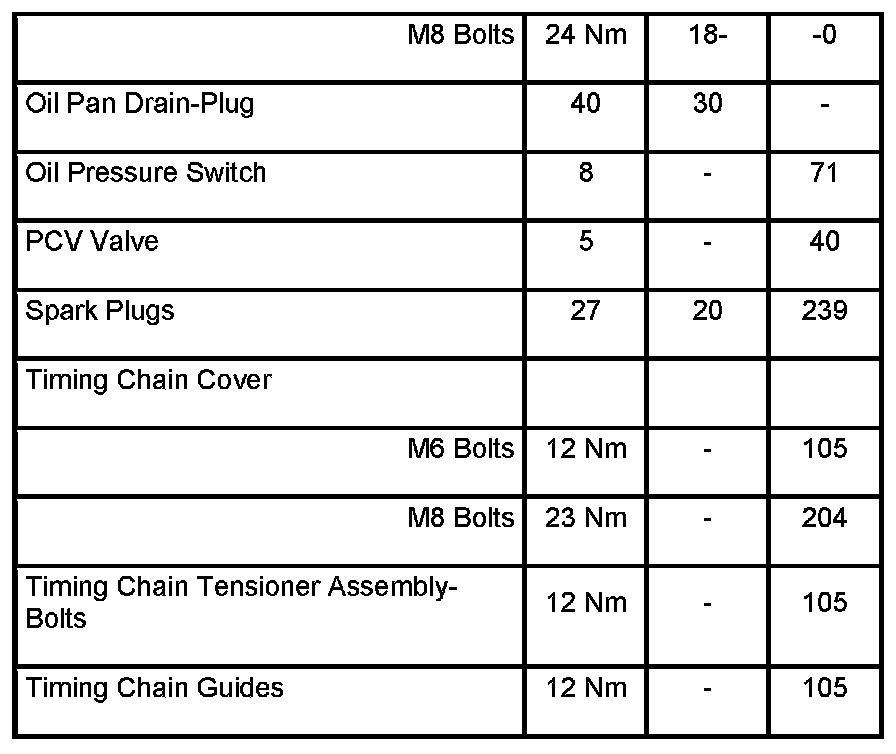

Torque (Part 2):





Torque (Part 2)


Water Pump
Tighten Water Pump Bolts to 24 Nm (212 in. lbs.).
