System Specifications

General Specifications:

General Specifications

Cylinder Block:

Cylinder Block

Pistons:

Pistons

Piston Rings:

Piston Rings

Connecting Rod:

Connecting Rod

Crankshaft:

Crankshaft

Crankshaft Damper-Bolt 210 Nm (155 ft. lbs.)

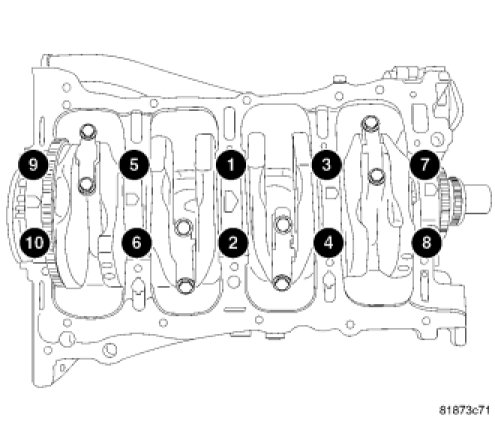

Crankshaft Main Bearing Cap-Bolts 27 Nm + 45� (20 ft. lbs.) + 45�

Connecting Rod Cap-Bolts 20 Nm +90� (15 ft. lbs.) +90�

Surface Variation - Head to Block
Deck surface must be within service limit of 0.050 mm (0.002 in.).
